Osg 1005113008 Straight Flute Tap 1/2-13 Unc Ticn

Product Description

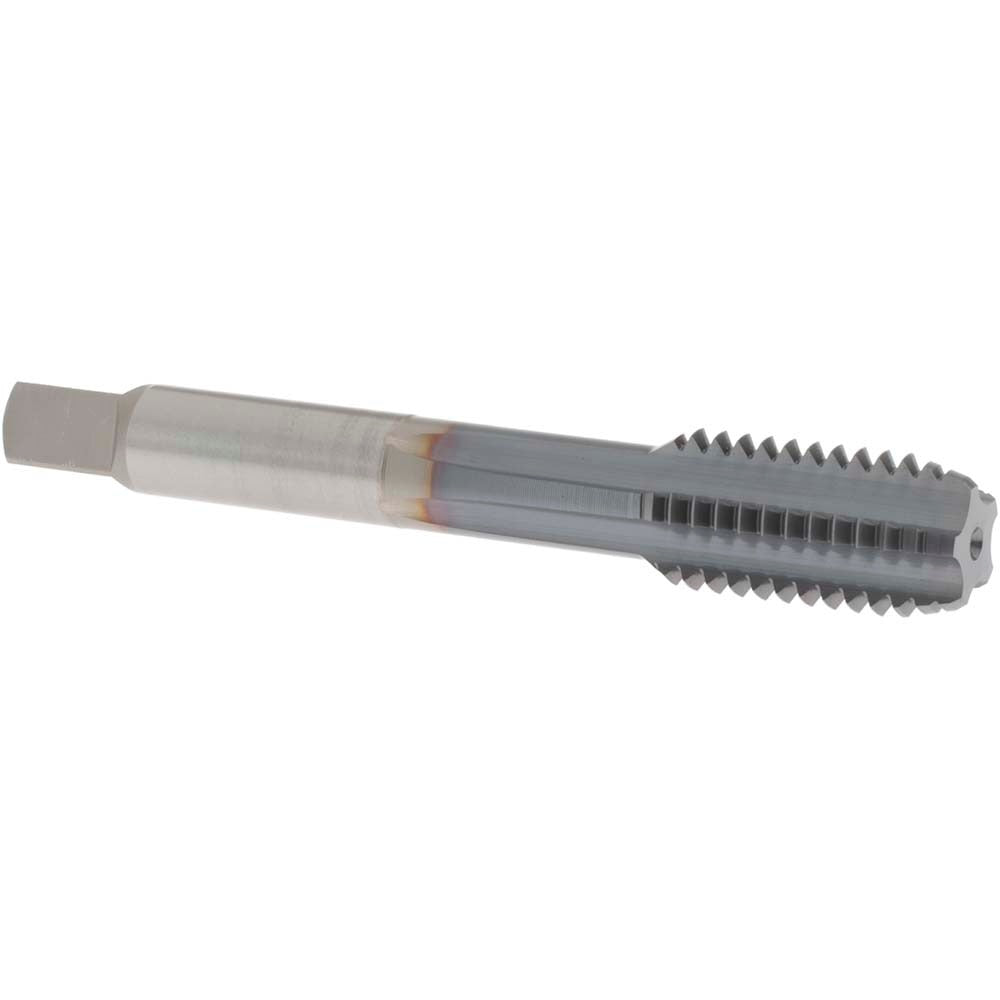

The OSG 1005113008 is a straight flute machine tap designed for cutting 1/2-13 UNC internal threads in hardened steel and alloy steel. It features a modified bottoming chamfer, allowing the tap to cut closer to the bottom of a blind hole than a standard plug tap while still providing moderate lead-in guidance. Five flutes deliver rigidity and chip control in demanding materials. The TiCN coating increases surface hardness and lubricity, reducing heat buildup and extending tool life in tough ferrous alloys. The powdered metal substrate provides a finer grain structure than standard HSS, contributing to edge retention under high-load threading conditions.

This tap is suited for machine threading operations in CNC machining centers, drill presses, and tapping machines where consistent thread quality in hardened or alloy steel is required. The 2B class of fit and H5 thread limit make it appropriate for standard-tolerance fastener applications in industrial, toolroom, and maintenance manufacturing environments. It is installed and operated by machinists and tool-and-die trades in production and job-shop settings.

Key Features

• Modified bottoming chamfer for threading close to the bottom of blind holes
• TiCN coating for improved wear resistance and reduced friction in hardened and alloy steels
• Powdered metal construction for enhanced edge retention over standard HSS
• 5-flute design provides rigidity and chip management in tough materials
• H5 thread limit and 2B class of fit for standard-tolerance UNC thread production
• Right-hand thread direction; no coolant-through requirement

Compatibility

Designed for machine threading of hardened steel and alloy steel workpieces requiring 1/2-13 UNC internal threads to a 2B class of fit. Part of OSG Series 10051.

Installation Notes

This tap is intended for use by qualified machinists in machine tapping applications. Ensure the spindle is stopped and the machine is in a safe state before loading or changing the tap. Use appropriate tapping fluid or cutting oil rated for hardened and alloy steel to maximize tool life. Verify that the pre-drilled hole diameter matches the recommended tap drill size for 1/2-13 UNC before beginning the threading operation.
