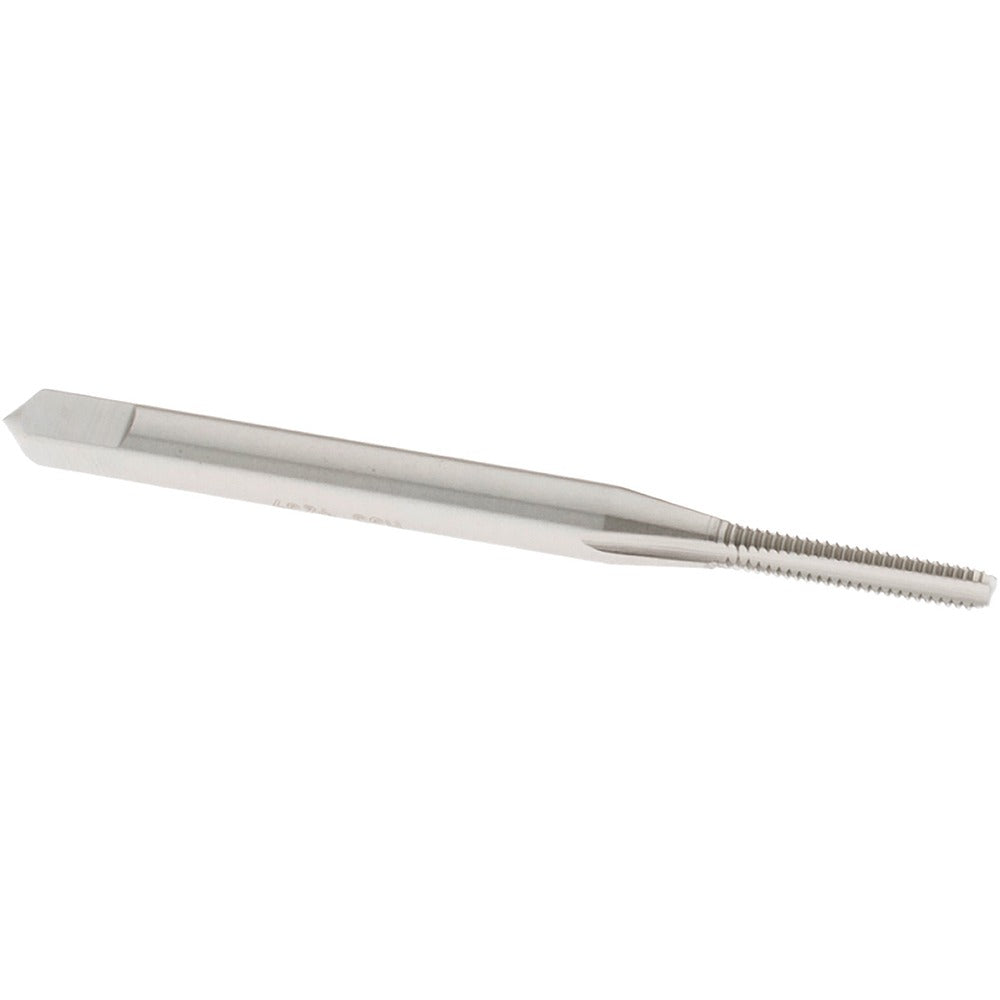

Osg 1001100 Straight Flute Tap 2-56 Unc Bottoming Hss

Product Description

The OSG 1001100 is a straight flute bottoming tap designed to cut internal threads in through-holes and blind holes where threads must extend close to the bottom. Built from high-speed steel with a bright, uncoated finish, it cuts a 2-56 UNC right-hand thread to a 2B class of fit with an H1 thread limit. The 3-flute design provides good chip clearance in a range of workpiece materials. Overall length is 1.75 inches, with a 0.4375-inch thread length and a 0.141-inch shank diameter. Machinists and toolroom technicians use this tap in manual and CNC tapping operations where close-tolerance threads are required.

This tap is suited for tapping 2-56 UNC threads in aluminum, cast aluminum, cast iron, low-carbon steel, medium-carbon steel, and high-carbon steel. The bottoming chamfer geometry makes it the correct choice when threads must be produced at the bottom of a blind hole, finishing what a taper or plug tap has already started. It is commonly used in precision machining, electronics hardware, and instrument assembly applications where the 2-56 thread size is standard.

Key Features

• Bottoming chamfer for threading to the bottom of blind holes
• 2-56 UNC thread form with 2B class of fit and H1 thread limit
• High-speed steel construction for durability across a range of ferrous and non-ferrous materials
• 3-flute design for balanced cutting action and chip clearance
• Bright, uncoated finish suitable for general-purpose tapping
• Right-hand thread direction, Series 102

Compatibility

Compatible with aluminum, cast aluminum, cast iron, high-carbon steel, low-carbon steel, and medium-carbon steel workpieces. Designed as an OEM-style replacement or direct-use tap for applications requiring a 2-56 UNC bottoming tap in Series 102.

Installation Notes

Install and use by a qualified machinist or toolroom technician. Ensure the workpiece is securely clamped and the tap is properly aligned before beginning the tapping operation. Apply appropriate cutting fluid for the workpiece material to extend tool life and improve thread quality. For blind holes, clear chips regularly to prevent tap breakage.
