Osborn 0005644700 Power Tube Brush Helical Nylon 600 Grit

Product Description

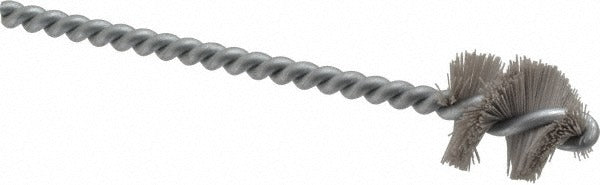

The OSBORN 0005644700 is a helical power tube brush designed for internal bore cleaning, deburring, and surface conditioning of tubes and cylindrical passages. The brush uses nylon fill material loaded with aluminum oxide abrasive at a 600 grit super fine grade, making it suited for light material removal and fine surface finishing without aggressive stock loss. The 0.89 inch brush diameter reaches into small-bore tubing and fittings, while the 0.228 inch shank diameter accepts standard rotary tool chucks and power drivers. Machinists, pipe fitters, and maintenance technicians use this brush where a consistent, repeatable finish inside a tube or bore is required.

This brush is appropriate for light-duty finishing and cleaning applications in metal tubing, conduit ends, heat exchanger tubes, and similar cylindrical workpieces. The helical fill pattern promotes even abrasive contact along the bore wall during rotation. With a 1 inch brush length and 5 inch overall length, it fits into relatively deep passages while remaining manageable in a hand-held rotary tool or drill press setup. It is well suited for maintenance shops, fabrication environments, and field service situations where fine surface prep inside tubing is needed.

Key Features

• Helical fill pattern provides uniform contact with bore walls during rotation
• Nylon fill with aluminum oxide abrasive delivers super fine, 600 grit surface conditioning
• 0.89 inch brush diameter fits small-bore tubes, fittings, and cylindrical passages
• 0.228 inch shank diameter is compatible with standard rotary tool and drill chucks
• 5 inch overall length allows reach into deeper passages without sacrificing control
• Super fine grade minimizes material removal while improving surface finish

Compatibility

Designed for use with standard rotary tools, portable drills, and drill press setups accepting a 0.228 inch diameter round shank. Suitable for internal bore finishing in metal tube and pipe applications.

Installation Notes

This brush is installed and operated by a licensed machinist, pipe fitter, or trained maintenance technician using a rotary tool or drill rated for the brush RPM. Ensure the workpiece is securely fixtured and the rotary tool is at a full stop before inserting or removing the brush from the chuck. Wear appropriate eye protection and follow shop safety procedures when operating any rotary abrasive tool. Do not exceed the maximum rated RPM for the brush as marked by the manufacturer.
