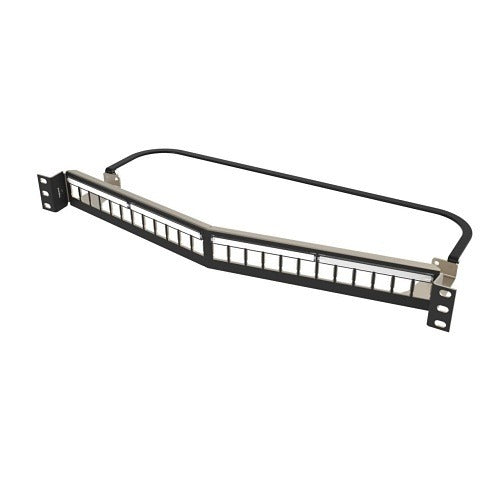

Ortronics PHAHDJSU24 Ftp Patch Panel 24 Port 1U

Product Description

The ORTRONICS PHAHDJSU24 is a 24-port FTP angled patch panel designed for structured cabling installations in network distribution frames and telecom rooms. Built in a 1U rackmount form factor, this panel accepts high-density jack inserts and supports shielded twisted-pair cabling runs. The angled port orientation reduces cable bend radius stress and simplifies front-of-rack cable management. Licensed network cabling technicians and low-voltage contractors typically specify this type of panel in horizontal cable distribution assemblies where port density and shielding continuity are critical requirements.

This panel is suited for commercial and enterprise network infrastructure projects where FTP shielding is required to meet EMI or regulatory standards. It fits standard 19-inch EIA equipment racks and is appropriate for data centers, telecom closets, and structured cabling backbone installations. The 1U height keeps rack space usage minimal while supporting 24 individual cabling terminations at a single panel position.

Key Features

• 24-port capacity in a single 1U rackmount panel
• FTP shielded design supports shielded twisted-pair cabling systems
• Angled port orientation reduces cable stress and aids front cable management
• Black finish for standard rack aesthetics and reduced glare
• Compatible with high-density jack insert modules for field-configurable termination

Compatibility

Designed as an OEM-style replacement or direct-install patch panel for structured cabling systems requiring FTP shielded 24-port 1U angled panel solutions in standard 19-inch EIA equipment racks.

Installation Notes

Installation should be performed by a licensed low-voltage or network cabling technician in accordance with applicable TIA-568 structured cabling standards. Power down or de-energize any adjacent active equipment before mounting the panel in the rack. Secure the panel to the rack using appropriate cage nuts and screws rated for the panel weight before terminating cable runs. Verify shielding continuity at each jack insert and confirm proper bonding to rack ground if the installation requires EMI compliance.
