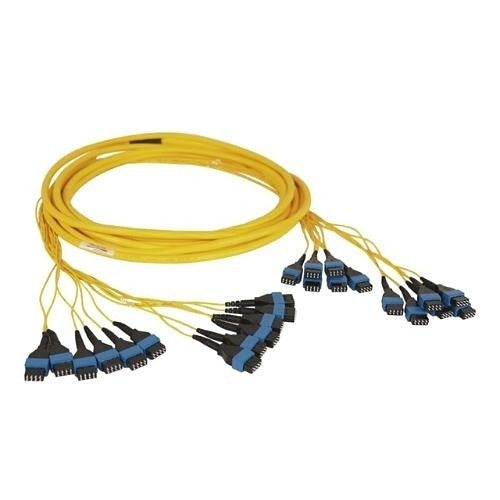

Ortronics CAMAMC630AJMMY035F 24-fiber OS2 Plenum Assembly

Product Description

The ORTRONICS CAMAMC630AJMMY035F is a 24-fiber OS2 singlemode pre-terminated fiber optic assembly designed for plenum-rated installations. Pre-terminated at the factory to precise length, this 35-foot assembly eliminates field termination, reducing installation time and the risk of connector-end contamination. OS2 singlemode fiber supports long-distance, high-bandwidth data transmission, making it well suited for backbone and horizontal runs in structured cabling systems. Licensed low-voltage technicians and network infrastructure installers are the typical trades that specify and deploy this assembly.

This assembly is intended for use in plenum air-handling spaces where fire and smoke ratings are required by code. The 35-foot factory-terminated length suits structured cabling environments such as data centers, enterprise networks, commercial office buildings, and campus backbone links. The pre-terminated design is particularly useful in high-density fiber distribution frames and patch environments where consistency and repeatability of connector performance are critical to system certification.

Key Features

• 24-fiber count supports high-density singlemode backbone and distribution runs
• OS2 singlemode fiber optimized for long-distance, low-loss transmission
• Plenum-rated jacket meets air-handling space requirements per fire and building codes
• Factory pre-terminated assembly ensures consistent connector performance and eliminates field polishing
• Fixed 35-foot length simplifies planning and reduces on-site cable management labor

Compatibility

Designed as a factory pre-terminated OS2 singlemode plenum fiber assembly suitable for use with compatible 24-fiber singlemode distribution frames, patch panels, and fiber enclosures in structured cabling systems.

Installation Notes

Installation should be performed by a qualified low-voltage technician familiar with structured cabling standards such as ANSI/TIA-568 and applicable local fire codes governing plenum-rated materials. Inspect connector end-faces before installation and protect them with dust caps until the moment of connection. Observe the minimum bend radius of the cable throughout routing to avoid signal degradation. Do not exceed the rated tensile load during pulling or routing through conduit or cable trays.
