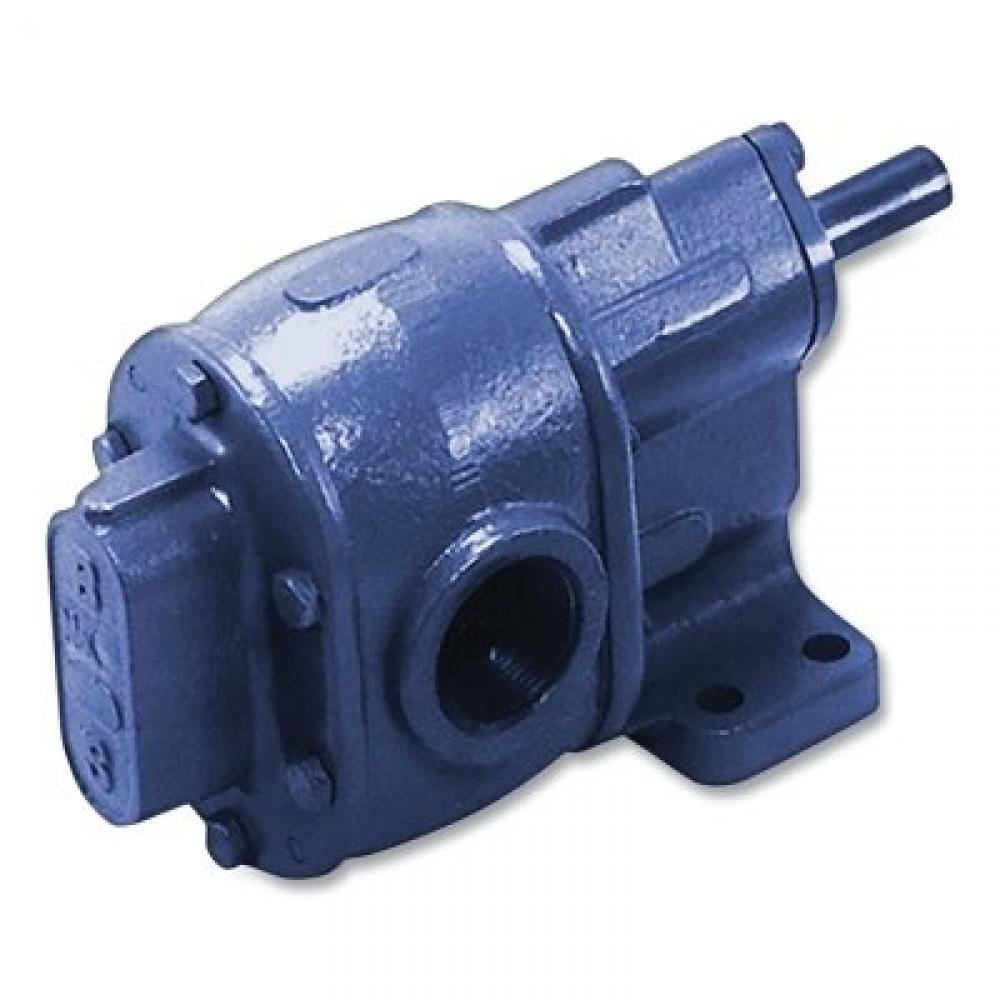

Ors Nasco 117-713-2-1 Bsm Pump B-Series Pedestal Mount Gear Pumps 200 psi

Product Description

The ORS NASCO 117-713-2-1 Bsm Pump B-Series Pedestal Mount Gear Pump is suitable for recirculating, mixing, transfer, hydraulic, and metering applications. Constructed of cast iron, ductile iron, or bronze, it operates at 200 psi and 250 F. This pump is pedestal mounted and available with an integral relief valve.

• Suitable for recirculating, mixing, transfer, hydraulic, and metering applications
• Constructed of cast iron, ductile iron, or bronze
• Seal options include compression packing, lip seal, and mechanical seal

Product Highlights

The BSM 'B' and 'S' series pumps are available pedestal or flange mounted, with integral relief valve.

Product Information

Standard Information

• Brand: ORS NASCO
• Manufacturer Part Number: 117-713-2-1
• Country of Origin: US

Technical Specifications

• 0 PSI Flow/Power: 9.4 gal/min/0.11 hp
• 100 PSI Flow / Power: 9.1 gal/min / 0.85 hp
• 200 PSI Flow/Power: 8.9 gal/min/1.50 hp
• 50 PSI Flow/Power: 9.3 gal/min/0.48 hp
• Brand: BSM Pump
• Classification: Rotary Pumps
• Country of Origin: US
• Displacement: 0.0104 gal/rev
• Flow [Max]: 9.4 gal/min
• Gear Material: Steel
• Gear Type: Spur
• Housing Material: Iron
• Mounting: Pedestal
• Port Size: 1/2 in
• Pressure [Max]: 200 PSI
• Rotation: CW or CCW
• Shaft Diam: 0.63 in
• Shaft Height: 3 in
• SKU Group: BSM Pump B-Series Pedestal Mount Gear Pumps
• Slip gpm/psi: 0.0023
• Speed [Max]: 900 RPM
• Type: Without Relief Valve
