Orenco S1 Simplex Control Panel 120V 1PH

Product Description

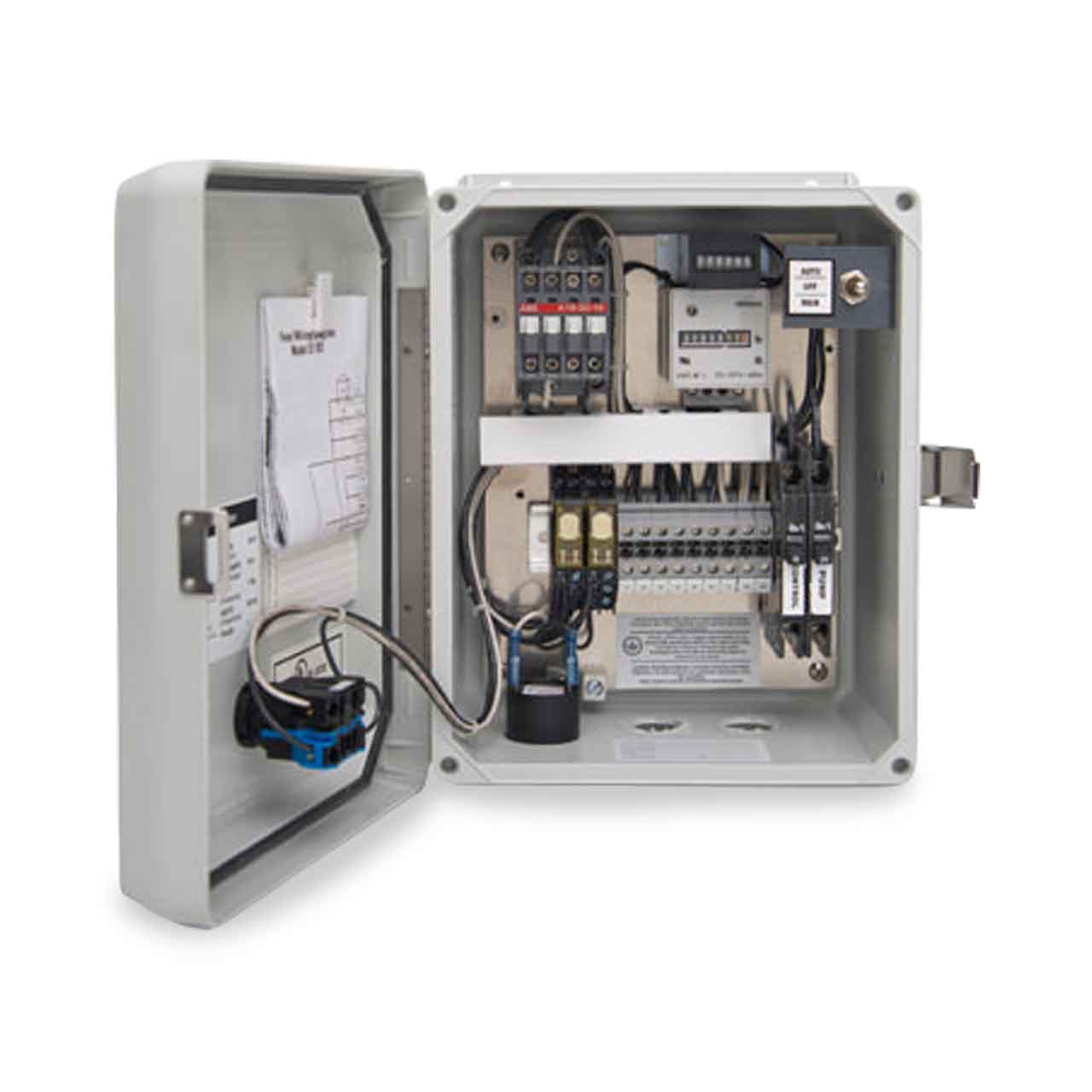

The ORENCO SYSTEMS S1 simplex control panel is suitable for pressure sewer (STEP) systems, onsite treatment systems, and pump control into conventional gravity or pressurized drainfields. It includes a motor contactor, increasing system life by reducing the load requirements on the float switches. It can accommodate motors up to 1 hp at 120VAC.

• Can be used for pressure sewer (STEP) systems
• Includes a motor contactor, which increases system life by reducing the load requirements on the float switches
• Allows options such as a programmable timer or use of larger horsepower pumps

Product Highlights

The S1 series control panels are a popular choice for a simplex pump and alarm system. Suitable for residential and light commercial sump, septic tank effluent, and raw sewage pumping applications.

Product Information

Standard Information

• Brand: ORENCO SYSTEMS
• Manufacturer Part Number: S1

Technical Specifications

• Panel Rating: 120 VAC, 16 FLA, 1 HP
• Hand-Off-Auto Switch: None
• 10A Control Breaker: (Requires 120 VAC control power)
• 20A 2 Pole Pump Breaker: None
• Audible Alarm: 95 dB at 24", Warble Tone Sound
• Visual Alarm: 7/8" Diameter Red Lens, "Push-To-Silence", LED Light
• Enclosure: 11.5"H x 9.5"W x 5.4"D, NEMA 4X, UV-Resistant Fiberglass, Stainless Steel Latch and Hinge
• AMP: 16
• Collection: S-Series
• Decibel Rating (dB): 95 dB
• Material: Fiberglass, Stainless Steel
• NEMA: NEMA 4X
• NSF Certified: No
• Phase: Single Phase
• UL Listed: UL 508
• Volts: 120V
• Horsepower: 1 hp
