Orbit T5R True 5 inch Reducer Cover, 4 inch Square Opening

Product Description

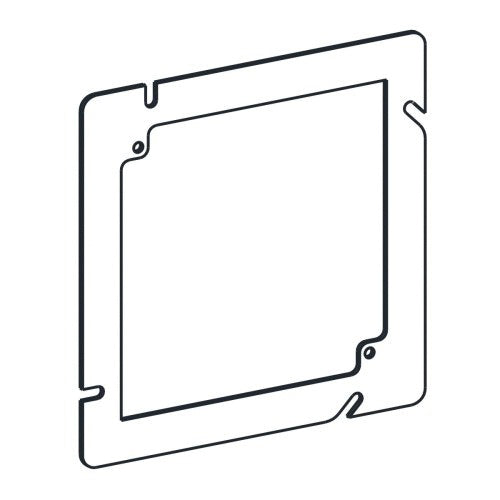

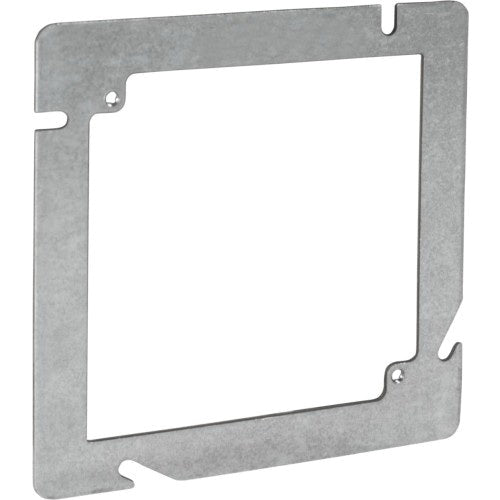

The Orbit Industries T5R True Box Reducer Cover is constructed from 16-gauge sheet steel. This 5-inch by 5-inch square cover features a 4-inch opening configuration and is designed for 5-inch square boxes, covers, and extensions. It provides additional space for conductors or devices, reducing the chance of short circuits and ground faults. The cover supports current copper CAT and fiber optic cables and is suitable for data installations in various commercial and institutional settings.

• More than double the capacity of standard 4-inch square boxes.
• Meets minimum bend radius requirements for easier installation of cables.
• Includes two preinstalled #8-32 screws and is ready for a 4-inch device ring.

Product Highlights

UL listed and RoHS compliant, ideal for sensitive bend radius data cable applications.

Product Information

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: T5R

Technical Specifications

• MPN: T5R
• Brand: ORBIT INDUSTRIES
• Standards: UL E227970 Listed, cULus Certified, RoHS Compliant
• Shape: Square
• Material: 16 Gauge Sheet Steel
• Item Name: True Box Reducer Cover
• Cubic Capacity: 75
• Configuration: 4 Inch Opening
• UNSPSC: 39121304
• UPC: 83524301611
