Orbit LVBS-4-158 Preassembled UMA-LVBS Square Box Device Ring

Product Description

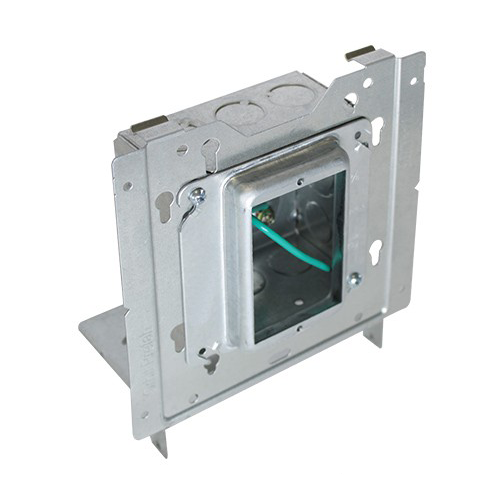

Orbit's LVBS-4-158 is a preassembled UMA-LVBS with Square Box and Device Ring. It is designed for easy installation in common switch and receptacle rough-ins. This model requires minimal assembly, allowing for faster deployment on job sites. The LVBS assemblies can attach directly to either open or closed sides of wall studs. Integrated back supports accommodate stud depths of two and a half inches and three and a half inches, and can extend to six inches using the FS-456-EXT accessory.

• Ready-to-install assembly
• Integrated support for multiple stud depths
• Includes ten grounding pigtails

Product Highlights

The LVBS Series simplifies the installation process and is suitable for both wall studs and ceiling joists with the use of the SSB-T5 mount.

Product Information

Standard Information

• Manufacturer: Orbit Industries
• Brand: Orbit

Technical Specifications

• Size: Four inches x four inches
• Series: LVBS
• Type: Square Extension Ring
• Material: Sheet Steel
• Number of Gangs: One
• Height: Four inches
• Width: Four inches
• Depth: Two and one-eighth inches
• Ring Depth: Five-eighths inches
