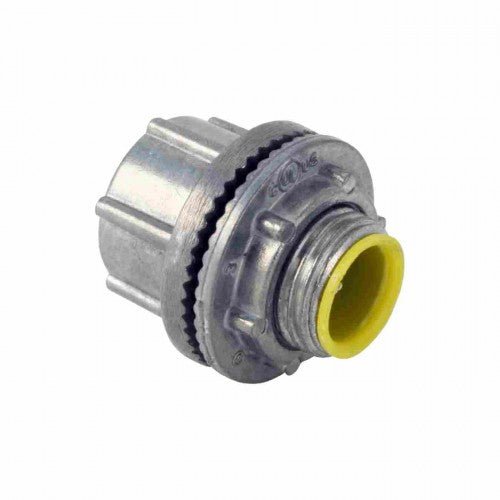

Orbit Industries WH-200 Die Cast Zinc Watertight Connector 2-Inch

Product Description

The ORBIT INDUSTRIES WH-200 is a die cast zinc watertight connector designed for use with threaded rigid or IMC conduits. It connects and bonds conduits to threaded openings in electrical boxes or enclosures. Suitable for both wet and dry locations, this connector features rugged metallic construction for mechanical protection and an insulated throat to protect wires. An O-ring ensures a rain-tight seal on enclosures.

• Connects and bonds threaded rigid or IMC conduits to boxes or enclosures.
• Die cast zinc construction ensures durability and mechanical protection.
• Features an insulated throat and an O-ring for wire protection and a rain-tight seal.

Product Highlights

This watertight connector is 105 deg C rated and suitable for wet and dry locations.

Product Information

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: WH-200

Technical Specifications

• Fitting Type: Connector
• Standards: UL E310658, UL 514B Listed
• Trade Size: 2 Inch
• Temperature Rating: 105 deg C
• Outside Diameter: 3.031
• Connection Type: FNPT
• Material: Die Cast Zinc
• For Use With: Rigid/IMC Conduit
• Length: 2.205
• Product Category: PIPE FITTING
