Orbit Industries TGD-1 1-Gang Switch Box 2-Inch x 3-Inch x 3-1/2-Inch

Product Description

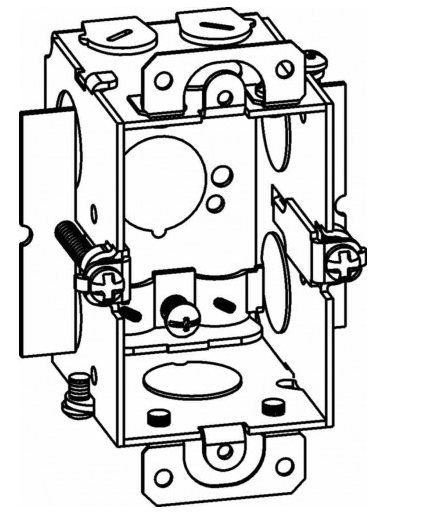

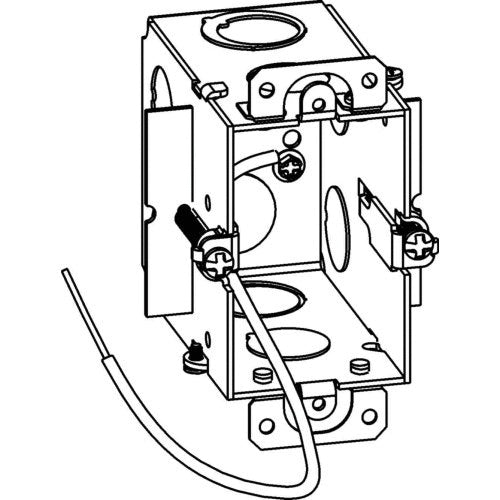

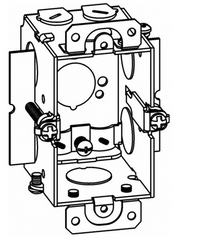

The ORBIT INDUSTRIES TGD-1 is a 1-gang rectangular switch box constructed from 16-gauge sheet steel with a galvanized finish. It features multiple 1/2-inch knockouts on the sides, ends, and bottom, and is compatible with old work Tigergrip installations. This switch box includes a pre-assembled 7-inch solid #12-AWG pigtail and a 10-32 ground screw, ensuring secure electrical connections. It is UL/cULus listed and RoHS compliant.

• Knockouts include (4) 1/2-Inch on sides, (2) 1/2-Inch and (2) MKO on ends, and (2) 1/2-Inch on the bottom.
• Features a removable side cover for multi-gang applications.
• Designed to grip onto finished walls for old work installations.

Product Highlights

Galvanized 1-gang switch box with pre-assembled pigtail and ground screw, suitable for old work installations.

Product Information

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: TGD-1

Technical Specifications

• Material: 16 Gauge Sheet Steel
• Standards: UL E227970 Listed, cULus Certified, RoHS Compliant
• Size: 2 Inch x 3 Inch
• Shape: Rectangular
• Number of Knockouts: 10
• Number of Gangs: 1
• Knockouts: (4) 1/2 Inch Side, (2) 1/2 Inch End, (2) MKO, (2) 1/2 Inch Bottom
• Depth: 3.5 Inches
• Item Name: Switch Box
• Finish: Galvanized
• For Use With: Old Work Tigergrip
• Includes: Pre-Assembled 7 Inch Solid Copper 12 AWG Pigtail and 10 - 32 Ground Screw
• Product Type: 1-Gang Gangable Switch Old Work TigerGrip Box
• Knockout Diameter: 1/2 in, 3/4 in
• Volume: 18.0 Cubic Inches
