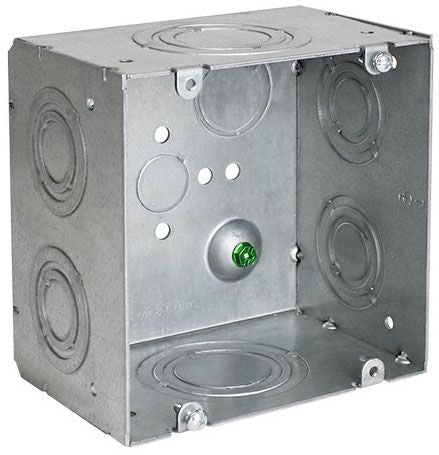

Orbit Industries t5b-200 5 Inch Steel Square Outlet Box

Product Description

The ORBIT INDUSTRIES t5b-200 is a 5-inch square steel outlet box designed for use in residential and commercial electrical rough-in work. Constructed from 16-gauge welded sheet steel, this box provides a 75.6 cubic inch capacity, making it suitable for installations requiring additional wire fill. It ships in a standard package of 12 and carries UL listing for both the United States and Canada. Electricians use this box in ceiling and wall applications where a larger junction or device box is required by code fill calculations.

This square box is intended for use in standard electrical rough-in installations where a 5-inch square configuration is specified. It is suited for residential and light commercial wiring projects, including junction, pull, and device mounting applications. The box accommodates a variety of conduit and cable entry points through its knockout pattern, supporting flexible installation layouts in new construction and retrofit work.

Key Features

• 16-gauge welded sheet steel construction for rigid, durable enclosure
• 75.6 cubic inch interior capacity supports higher wire fill counts per NEC requirements
• 11 total knockouts across bottom and side locations for flexible conduit routing
• Knockout sizes include 1/2 inch, 3/4 inch, 1 inch, 1-1/4 inch, and 1 inch to 2 inch concentric options
• Two ground screws included for bonding conductors
• UL listed for use in the United States and Canada
• RoHS compliant materials

Compatibility

Designed as an OEM-style replacement and standard-fit option for 5-inch square steel outlet box applications in residential and commercial electrical systems.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize all circuits in the work area before beginning box installation or wiring. Verify that the selected knockout sizes match the conduit or cable connectors being used before removing knockouts. Ensure the box is securely fastened to framing or a listed support bracket before pulling wire.

Technical Specifications

• Material: 16-gauge welded sheet steel
• Box Width: 5 inches
• Box Length: 5 inches
• Box Depth: 3-1/4 inches
• Interior Capacity: 75.6 cubic inches
• Total Knockouts: 11
• Knockout Locations: 5 bottom, 6 side
• Knockout Sizes: (1) 1/2 inch and 3/4 inch bottom, (1) 3/4 inch and 1 inch bottom, (1) 1/2 inch bottom, (2) 1 inch to 2 inch concentric side, (2) 1 inch and 1-1/4 inch, (2) 1/2 inch and 3/4 inch side
• Included Hardware: 2 ground screws
• Certifications: UL listed (US and Canada), RoHS compliant
• Standard Package Quantity: 12

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: t5b-200
