Orbit Industries SSB-TBAR Simple Support Bracket T-bar Clips

Product Description

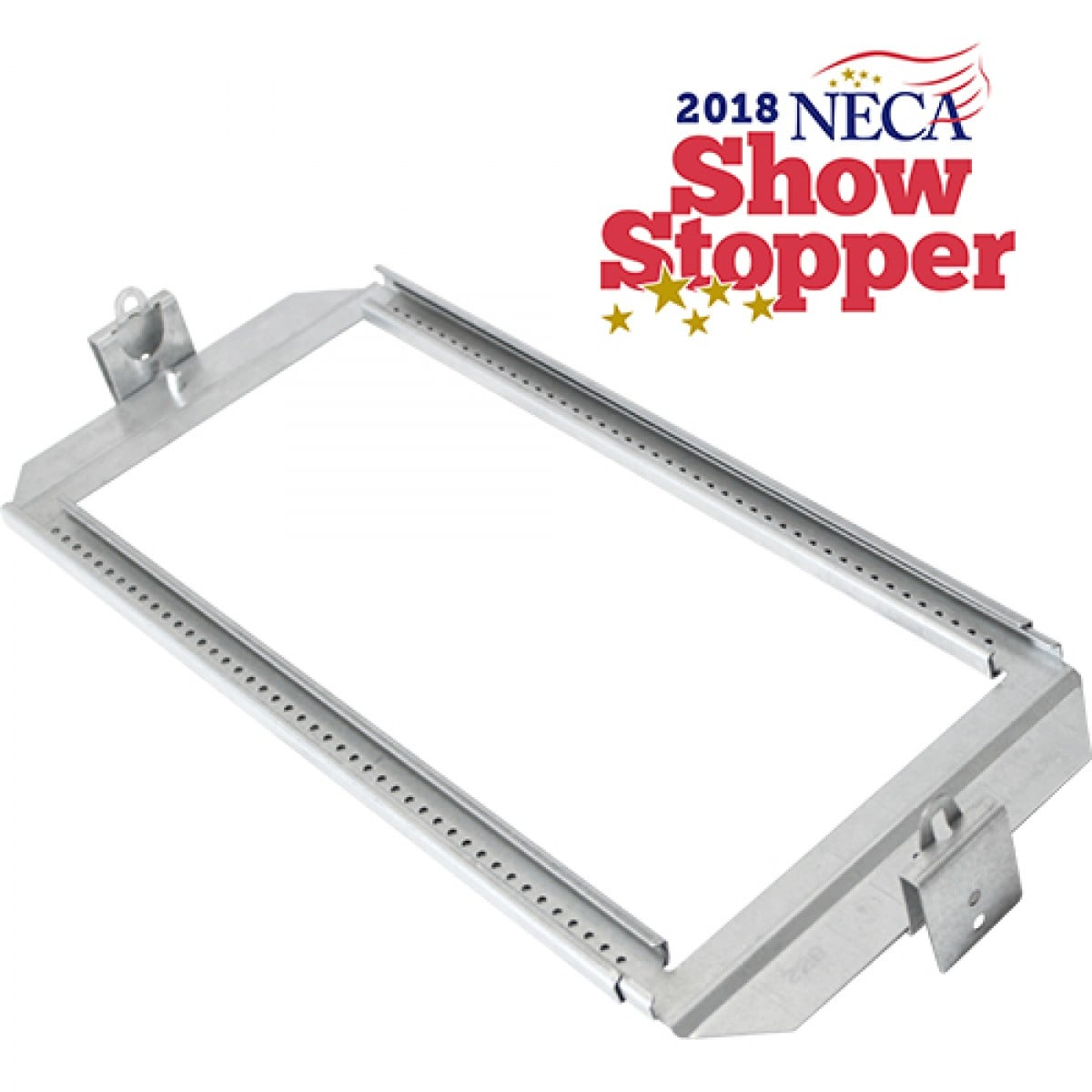

The ORBIT INDUSTRIES SSB-TBAR is an adjustable simple support bracket designed for mounting electrical boxes horizontally between T-bar drop ceiling grid members. The bracket adjusts from 15 inches to 25 inches, allowing installation across a range of standard grid spacings without the need for custom hardware. It ships with T-bar mounting clip assemblies that secure the bracket directly to the ceiling grid flanges. Electricians and low-voltage installers use this bracket to support junction boxes, ceiling fans, or similar fixtures in suspended ceiling systems where traditional overhead structure is not accessible.

The SSB-TBAR is suited for commercial and light commercial interior applications where drop ceiling grids serve as the primary mounting surface. Typical install scenarios include office buildouts, retail spaces, and multi-tenant interiors where T-bar suspended ceilings are standard. The included T-bar clip assemblies eliminate the need for additional fasteners to the grid, keeping the install clean and code-ready. The adjustable span accommodates standard 24-inch module grid layouts as well as tighter configurations.

Key Features

• Adjustable length spans 15 inches to 25 inches to fit varying grid spacings
• Includes T-bar drop ceiling mounting clip assembly for tool-minimal installation
• Mounts electrical boxes horizontally between T-bar grid members
• Compatible with standard suspended ceiling T-bar grid systems
• No separate fasteners required for attachment to the grid flanges

Compatibility

Designed as an OEM-style support solution for standard T-bar drop ceiling grid systems used in residential and commercial suspended ceiling applications.

Installation Notes

Installation is typically performed by a licensed electrician in accordance with applicable NEC requirements for box support and securing. Power to the circuit must be shut off at the breaker before mounting any electrical box to the bracket. The T-bar clips should be seated fully on the grid flange before applying load. Verify that the grid system is rated to support the combined weight of the bracket, box, and any attached fixture before completing the install.

Technical Specifications

• Adjustable Length: 15 to 25 inches
• Mounting Type: T-bar drop ceiling grid
• Included Hardware: T-bar clip assembly
• UPC: 835243025332

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: SSB-TBAR
