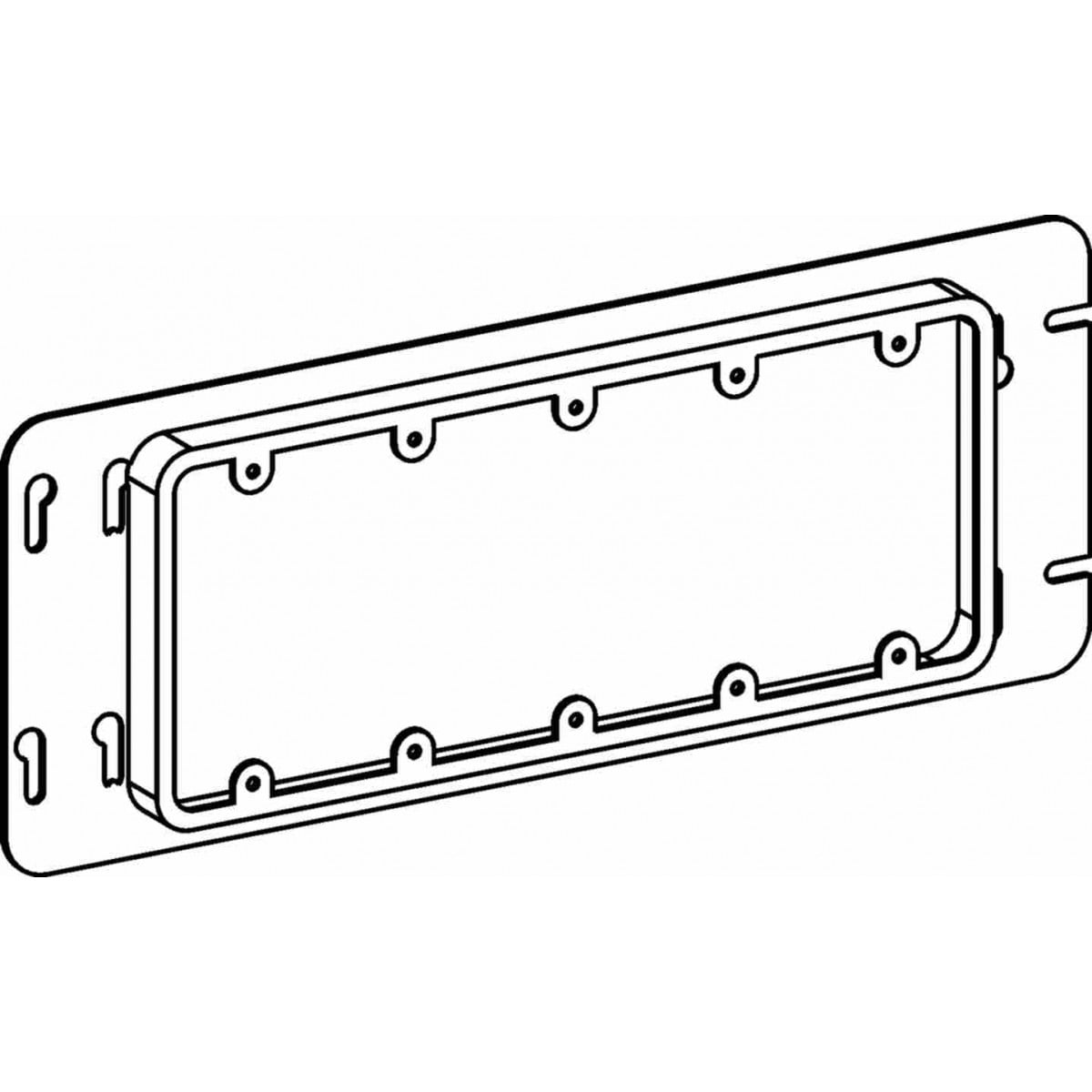

Orbit Industries SR-5 5-gang Device Ring Switch Box

Product Description

The ORBIT INDUSTRIES SR-5 is a 5-gang device ring designed for use with multigang electrical boxes. It provides a raised mounting surface of 3/4 inches, allowing wallplates and devices to sit flush against finished wall surfaces. The ring measures 12-1/4 inches in length by 4-9/16 inches in width. Electricians use this type of device ring during rough-in and finish wiring stages to adapt multigang boxes to standard wallplate configurations. It is a common component in both new construction and retrofit electrical installations where multiple switches or receptacles occupy a single gang location.

The SR-5 is suited for residential and light commercial electrical work. It installs over a multigang electrical box to provide a clean, level mounting surface for five devices such as switches, receptacles, or low-voltage inserts. The raised profile of 3/4 inches accommodates wall finishing materials including drywall and plaster, keeping device faces at the correct depth relative to the finished wall surface.

Key Features

• 5-gang configuration supports five devices in a single multigang box opening
• Raised 3/4 inches to accommodate finished wall surfaces
• Overall dimensions of 12-1/4 inches x 4-9/16 inches
• Designed for use with standard multigang electrical boxes
• Supports switches, receptacles, and low-voltage inserts in a single plate arrangement

Compatibility

Designed as an OEM-style replacement or new-installation device ring for standard 5-gang multigang electrical boxes in residential and light commercial applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize the circuit at the breaker panel and verify with a non-contact voltage tester before beginning work. The ring is secured to the multigang box using the provided or field-supplied mounting screws, and devices are installed into the ring openings before the wallplate is applied. Confirm that the raised height is appropriate for the finished wall thickness before fastening.

Technical Specifications

• Gang Count: 5
• Overall Length: 12-1/4 inches
• Overall Width: 4-9/16 inches
• Raise Height: 3/4 inches
• UPC: 835243000773

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: SR-5
