Orbit Industries RN-100-C Rigid Conduit Nipple 1 in Close

Product Description

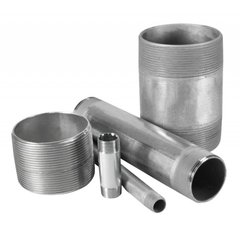

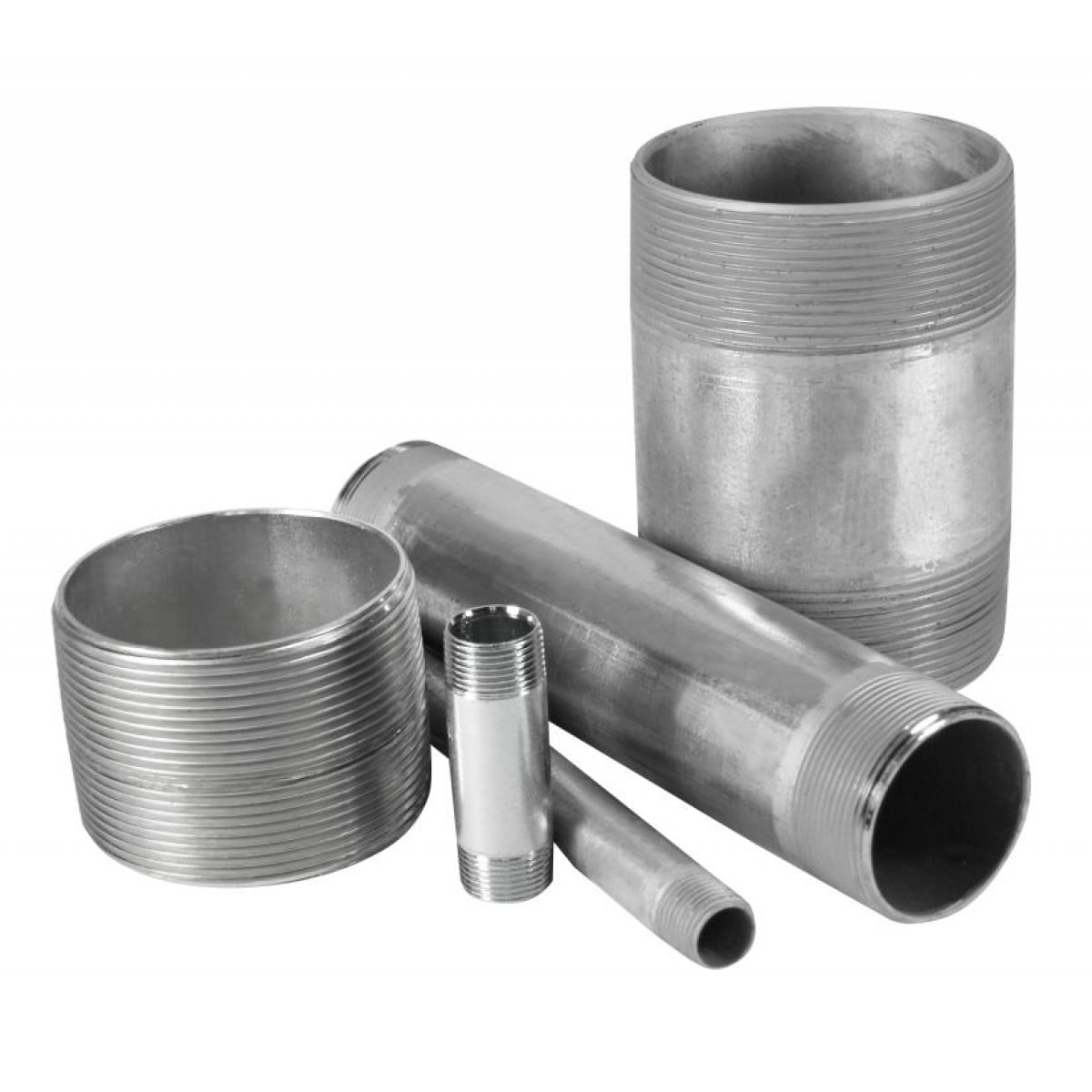

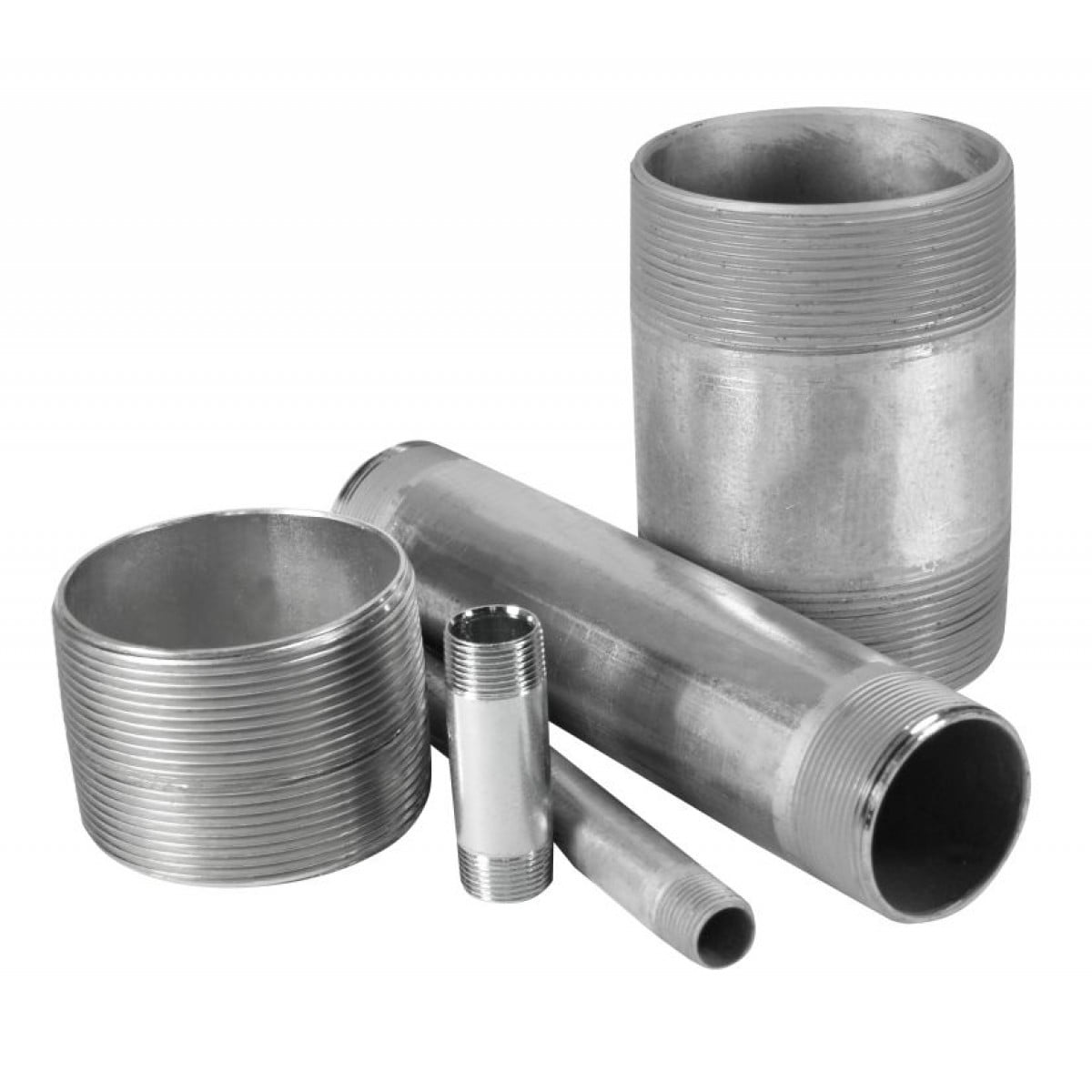

The ORBIT INDUSTRIES RN-100-C is a close-pattern rigid conduit nipple sized for 1-inch trade size threaded conduit systems. It is designed to connect two junction boxes through knockout openings using standard locknuts, providing a short, secure mechanical connection between enclosures. Constructed from rugged metal, the RN-100-C delivers the mechanical protection required in commercial and industrial wiring installations. Electricians and wiremen use this fitting wherever a close-nipple connection is needed between boxes mounted directly adjacent to one another.

This nipple is suited for use with threaded rigid metallic conduit (RMC) and intermediate metal conduit (IMC) systems. It fits standard 1-inch trade size knockout openings and is a common component in panel, junction box, and enclosure installations across commercial, industrial, and residential electrical work. The close configuration minimizes projection between two enclosures mounted back-to-back or side-by-side.

Key Features

• Close-pattern nipple for minimum standoff between adjacent enclosures
• Compatible with 1-inch trade size threaded rigid and IMC conduit systems
• Rugged metallic construction for mechanical protection and durability
• Installs with standard locknuts through knockout openings
• Suitable for commercial, industrial, and residential electrical applications

Compatibility

Designed as an OEM-style fitting for use with 1-inch trade size threaded rigid metallic conduit and intermediate metal conduit knockout openings.

Installation Notes

Installation is performed by licensed electricians in accordance with NEC Article 344 for rigid metal conduit and Article 342 for IMC. De-energize all circuits and lock out power before working on any enclosure or panel. Thread the nipple through aligned knockout openings and secure each end with appropriate locknuts torqued to the enclosure wall. Inspect threads for damage before installation to ensure a secure, code-compliant mechanical connection.

Technical Specifications

• Trade Size: 1 inch
• Pattern: Close
• Compatible Conduit Types: Rigid Metallic Conduit (RMC), Intermediate Metal Conduit (IMC)
• Construction: Metallic
• UPC: 835243032514

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: RN-100-C
