Orbit Industries OF7602-SW Electroplated Zinc Steel Raintight Insulated Throat Connector 3/4-inch

Product Description

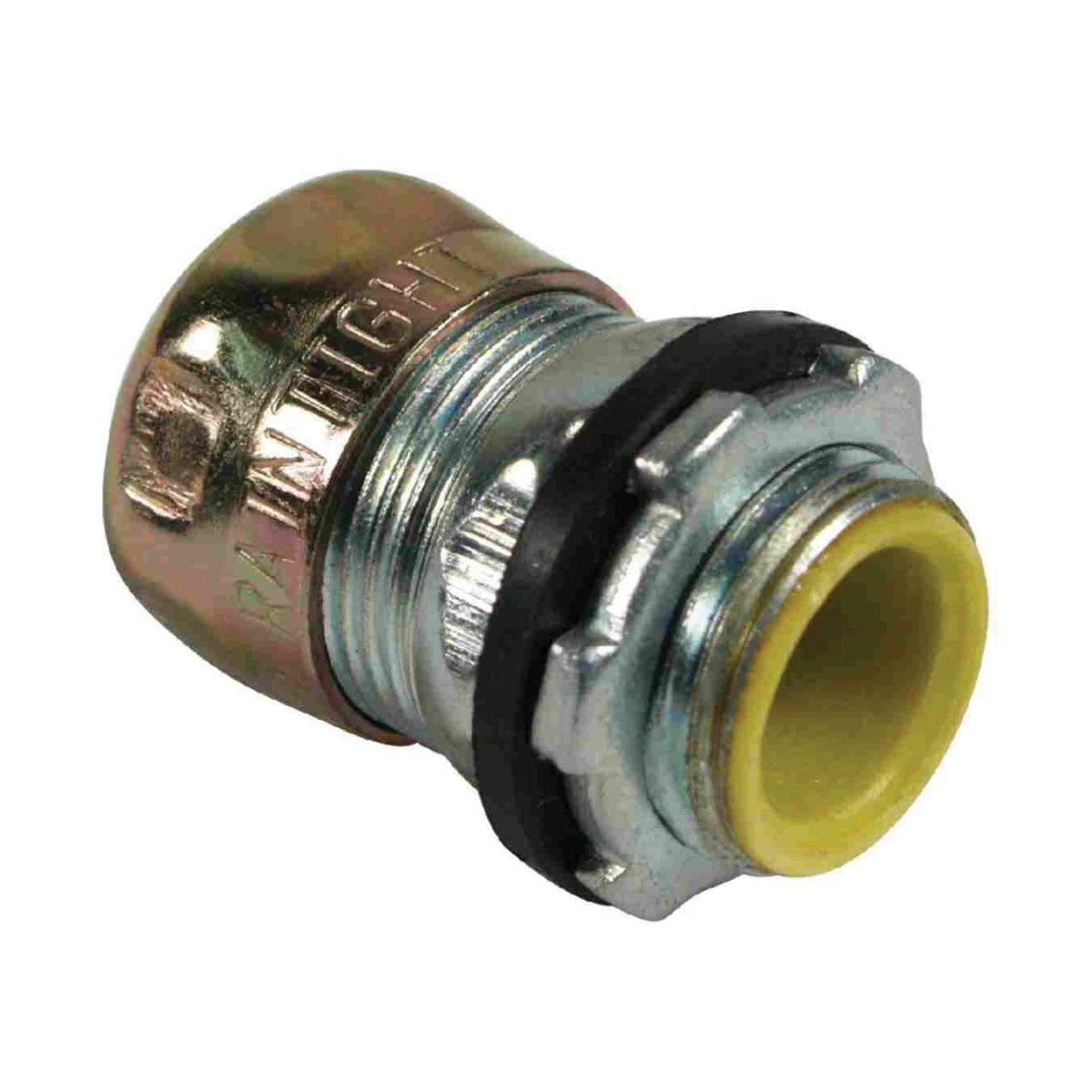

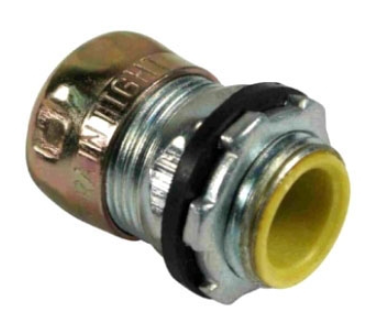

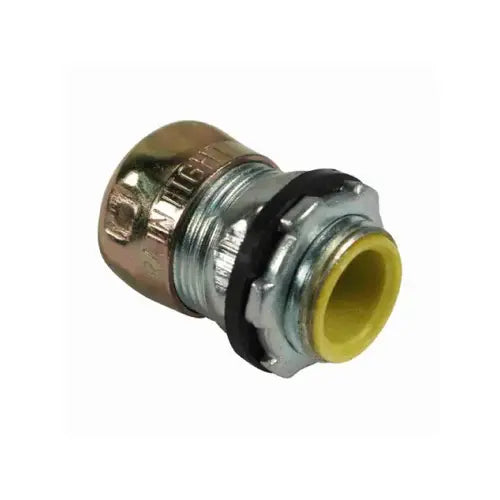

The Orbit Industries OF7602-SW is a 3/4-inch electroplated zinc steel raintight insulated throat connector. Designed for wet locations, this compression connector securely bonds EMT thin wall conduits to electrical junction boxes or enclosures, providing essential mechanical protection. It is constructed from durable steel with an electroplated zinc finish, measuring 1.2 inches in diameter and 1.575 inches in length, with a 0.949-inch thread length. This UL-listed connector is suitable for applications exceeding 600 volts.

• Steel construction provides mechanical protection for conduits and electrical enclosures.
• Labor-saving design allows for quick tightening on EMT conduits during installation.
• Suitable for concrete-tight applications and systems operating above 600 volts.

Product Highlights

Raintight insulated throat connector for EMT conduits, offering mechanical protection and efficient installation in wet or concrete-tight locations.

Product Information

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: OF7602-SW

Technical Specifications

• Fitting Type: Connector
• Standards: UL E310660, Conforms to UL 514B
• Type: Raintight, Insulated Throat EMT Compression Connector
• Trade Size: 3/4 Inch
• Thread Length: 0.949
• Outside Diameter: 1.2
• Connection Type: Compression
• Finish: Electroplated Zinc
• Material: Steel
• Application: Wet Location to Bond EMT Thinwall Conduits to Electrical Junction Box
• Length: 1.575
