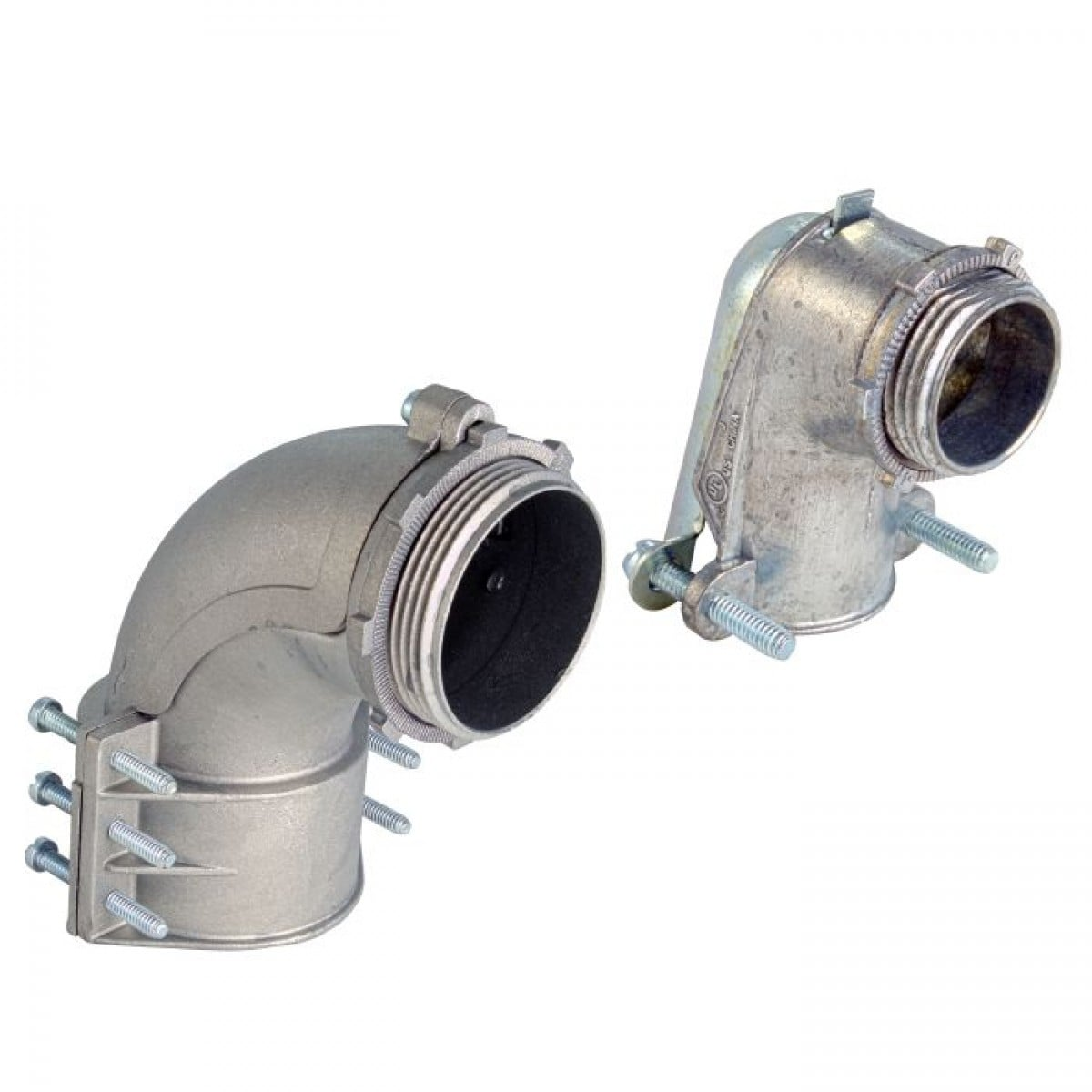

Orbit Industries OF6467 90 Degree Angle Flex Connector 2.5in

Product Description

The ORBIT INDUSTRIES OF6467 is a 90-degree angle, squeeze-type flexible metal conduit connector designed for use in dry locations. It bonds flexible metal conduit to electrical boxes or enclosures, providing a secure mechanical connection and a reliable bonding path. Built from zinc-construction metal, this connector delivers durability and mechanical protection for both the conduit and the junction box or enclosure it terminates into. The 2.5-inch trade size fits correspondingly sized flexible metal conduit runs. Licensed electricians and electrical contractors install this fitting as part of a complete conduit assembly.

This connector is suited for residential and light commercial electrical installations where flexible metal conduit must terminate at a box or enclosure in a dry environment. The 90-degree angle body is particularly useful in tight or confined spaces where a straight connector would require an abrupt conduit bend near the box knockout. It is commonly used in equipment connections, panel terminations, and junction box entries where flexible conduit routing changes direction close to the enclosure.

Key Features

• 90-degree angle body reduces conduit stress in tight termination spaces
• Squeeze-type design allows tool-free or minimal-tool installation without locknut threads on the conduit end
• Zinc metallic construction provides mechanical protection and bonding continuity
• 2.5-inch trade size accommodates standard flexible metal conduit of the same trade size
• Rated for dry locations in compliance with standard electrical installation requirements

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 2.5-inch trade size flexible metal conduit systems in dry-location electrical applications.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the circuit and verify the absence of voltage before beginning any conduit termination work. Insert the flexible metal conduit into the squeeze connector body and tighten the clamp screw to secure the conduit, then thread the connector into the box knockout and secure with the provided locknut. Do not use this connector in wet or damp locations, as it is rated for dry environments only.

Technical Specifications

• Trade Size: 2.5 inches
• Angle: 90 degrees
• Connection Type: Squeeze type
• Material: Zinc
• Location Rating: Dry locations
• UPC: 835243050068

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: OF6467
