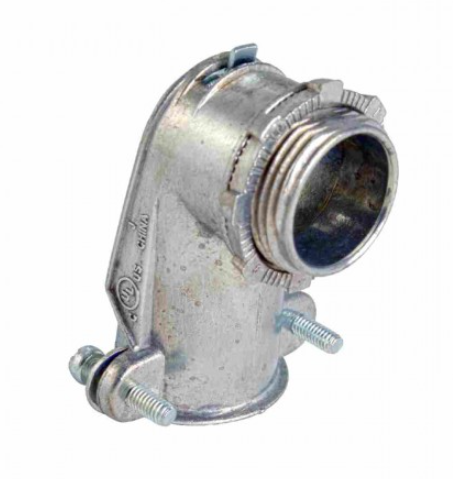

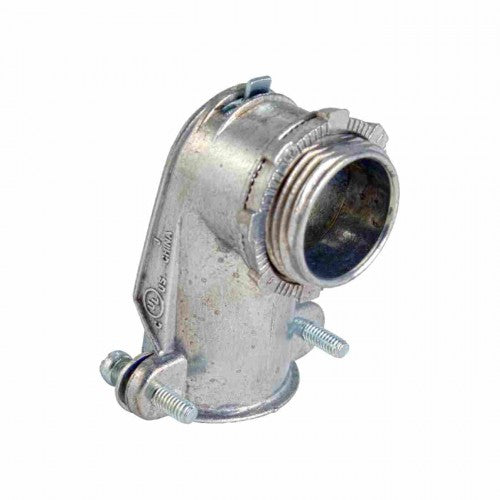

Orbit Industries OF645 Ac(Bx)/mc/flex connectors squeeze type 3/4 inch 90 angle

Product Description

The ORBIT INDUSTRIES OF645 is a 90-degree angle squeeze type connector designed for use in dry locations. It effectively bonds flexible metal conduit, including AC (BX), MC, and FMC/RWFMC types, to a box or enclosure. Constructed from durable zinc die-cast material, this connector provides rugged mechanical protection for the raceway, ensuring long-lasting performance and secure connections.

• 90-degree angle squeeze type for secure connections.
• Bonds flexible metal conduit (AC, MCI-A, FMC/RWFMC) to enclosures.
• Rugged metallic construction ensures durability and mechanical protection.

Product Highlights

Durable zinc die-cast 90-degree squeeze connector for flexible metal conduit in dry locations.

Product Information

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: OF645

Technical Specifications

• Material: Zinc Die Cast
• Compatibility: AC, MCI-A, FMC/RWFMC
• Cable Range (Steel AC): 6/4 (0.945") - 3/4 (1.185")
• Cable Range (AL AC): 6/4 (0.925") - 2/4 (1.133")
• Cable Range (Steel MCI-A): 8/4 (0.827") - 3/4 (1.185")
• Cable Range (AL MCI-A): 8/4 (0.827") - 3/4 (1.185")
• Cable Range (Steel/AL FMC/RWFMC): 3/4"
• Size: 3/4"
• Angle: 90 Degree
• Type: Flex Squeeze Connector
• Category: PIPE FITTING
• UL File Number: E310658
