Orbit Industries OF643 90 Angle Ac(Bx)/mc/flex Connectors Squeeze Type 3/8 Inch

Product Description

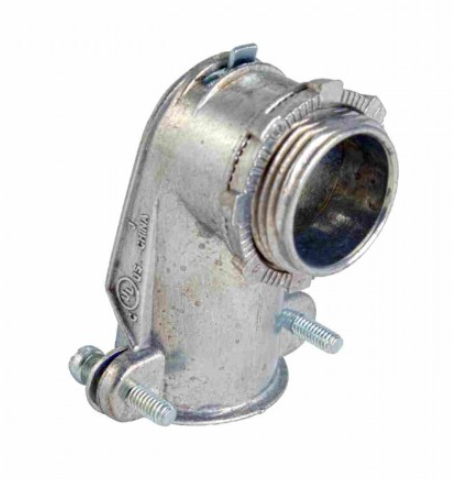

The ORBIT INDUSTRIES OF643 is a 90-degree angle squeeze type connector designed for use in dry locations. It bonds flexible metal conduit (AC/BX/MC) to a box or enclosure, ensuring secure electrical connections. Constructed with rugged metallic materials, this connector provides mechanical protection for the raceway, enhancing system integrity and durability. It is suitable for various cable types including Steel AC, AL AC, Steel MCI-A, AL MCI-A, and Steel/AL FMC/RWFMC.

• Features Zinc Die Cast construction for durability.
• Designed for AC, MCI-A, and FMC/RWFMC cable types.
• Meets Federal Spec. A-A-50552 for quality assurance.

Product Highlights

Rugged metallic construction provides mechanical protection for the raceway.

Product Information

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: OF643

Technical Specifications

• Cable Range - Steel AC: 14/2 (0.453") - 8/2 (0.647")
• Cable Range - AL AC: 14/2 (0.453") - 10/4 (0.622")
• Cable Range - Steel MCI-A: 14/2 (0.453") - 8/2 (0.669")
• Cable Range - AL MCI-A: 14/2 (0.453") - 10/4 (0.646")
• Cable Range - Steel/AL FMC/RWFMC: 3/8"
• Brand: Orbit Industries, Inc.
• MPN: OF643
• Category: PIPE FITTING
• UL File Number: E310658
• Knockout Size: 3/8 inch, 1/2 inch
• UPC: 835243049994
• Material: Die-Cast
• Angle: 90 Degree
• Connector Type: AC/Flex
• Connector Trade Size: 3/8"
