Orbit Industries OF6232 metal clad (mc) saddle-type connectors 3/4 inch

Product Description

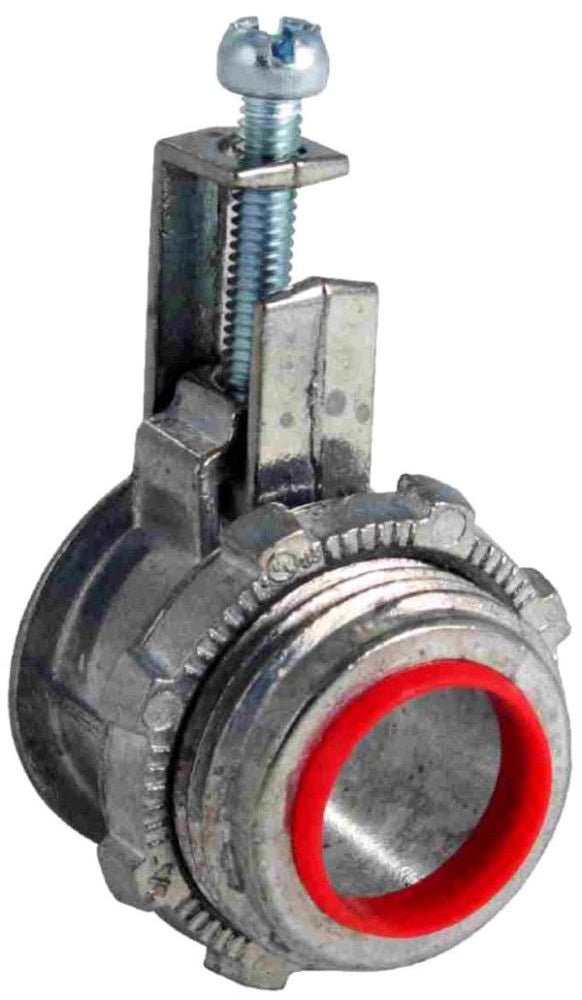

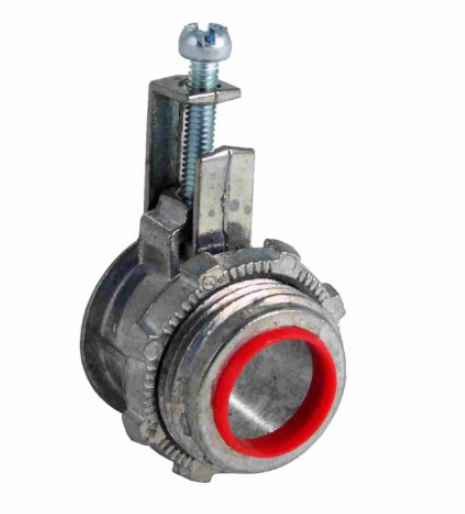

The Orbit Industries OF6232 is a 3/4 inch metal clad (MC) saddle-type connector, constructed from zinc die-cast material. It features a combo head set-screw and an insulated throat, suitable for dry locations only. This connector is designed for AC, MCI-A, NM Cable, FMC/RWFMC applications, ensuring secure cable connections in various electrical installations.

• Zinc Die Cast construction for durability.
• Combo Head Set-Screw for easy installation.
• Insulated Throat protects cables from abrasion.

Product Highlights

Durable zinc die-cast connector with insulated throat for secure cable management in dry locations.

Product Information

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: OF6232

Technical Specifications

• Steel Interlocking Cable Range: 0.661 - 0.711 Dia.
• AL Interlocking Cable Range: 0.775 - 0.825 Dia.
• Steel/AL AC Cable Range: 0.650 - 0.810 Dia.
• Steel FMC Cable Range: 1/2"
• Size: 3/4 inch
• Model: OF6232
• Brand: Orbit Industries
