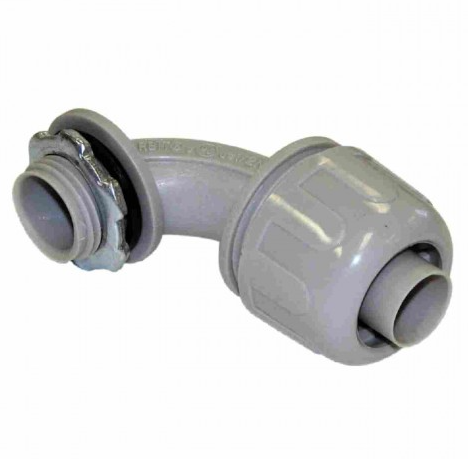

Orbit Industries NMLT90-125 PVC Type B Non-Metallic 90-Degree Liquidtight Connector 1-1/4-Inch

Product Description

Orbit Industries NMLT90-125 nonmetallic 90-degree angle connectors are designed for use in both wet and dry locations where conduits and fittings are not subjected to physical damage. Constructed from gray nonmetallic PVC plastic, this connector provides superior corrosion resistance and flexibility. It is engineered to withstand harsh weather and extreme temperature changes, ensuring reliable performance for liquidtight conduit applications.

• Corrosion-resistant
• Steel locknut
• Designed to withstand harsh weather and extreme temperature changes

Product Highlights

This nonmetallic PVC liquidtight connector offers 90-degree angle flexibility and includes a Neoprene O-ring and locknut for secure installations.

Product Information

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: NMLT90-125

Technical Specifications

• Brand: Orbit Industries
• Standards: UL E310658, 514B Listed, cULus Certified
• Fitting Type: Connector
• Type: Type B, Non-Metallic
• Trade Size: 1-1/4 Inch
• Material: PVC
• For Use With: Non-Metallic Type B Liquidtight Conduit
• Connection Type: Threaded x Screw-In
• UNSPSC: 39121420
• GTIN: 00835243033092
• UPC: 83524303309
• MPN: NMLT90-125
• Category: Pipe Fitting
• UL File Number: E310658
• Angle: 90 Degree
• Connector Type: Liquid Tight
• Includes: Neoprene O-ring and locknut
