Orbit Industries LVWP1 Low Voltage Wall Mounting Plate

Product Description

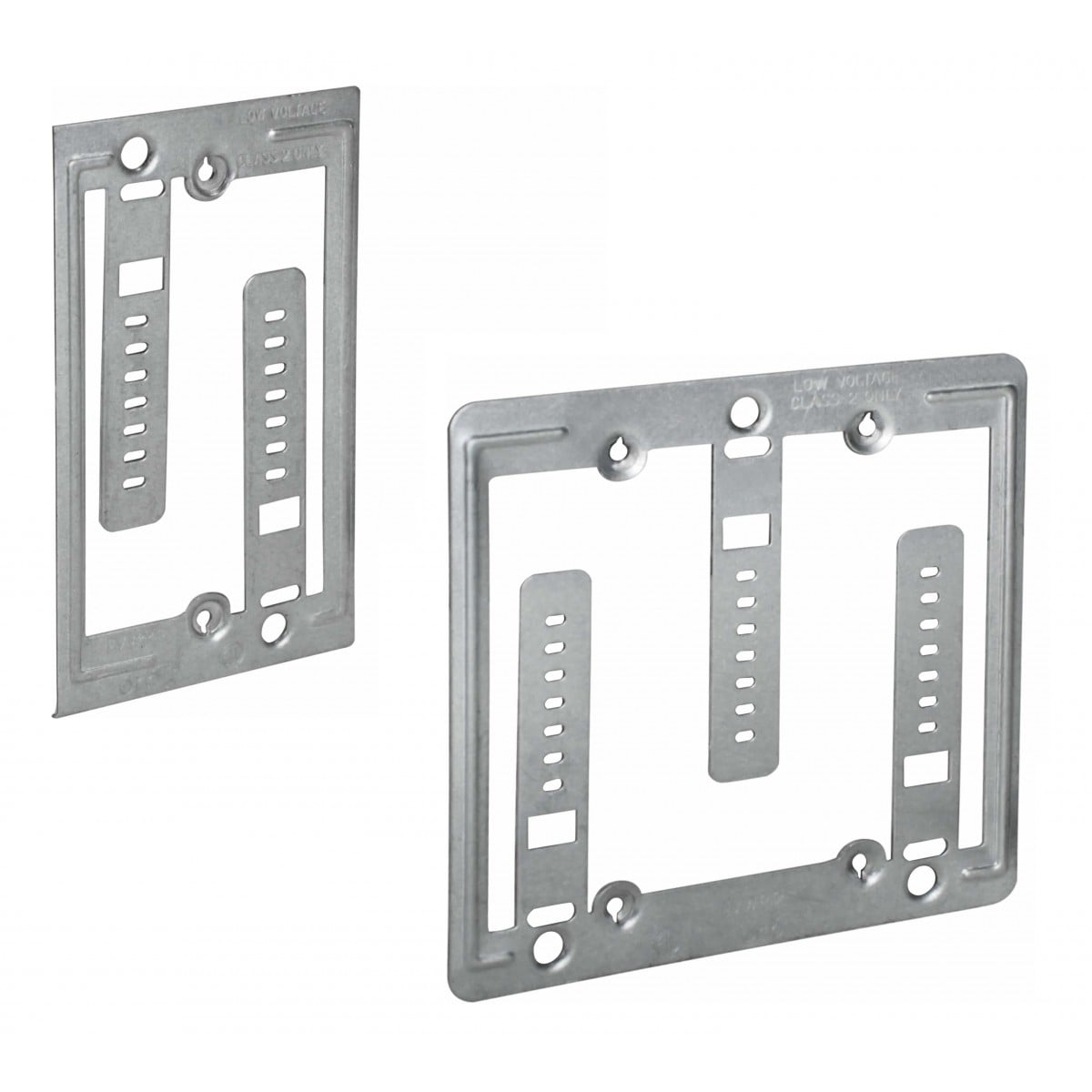

The ORBIT INDUSTRIES LVWP1 is a 1-gang low voltage wall mounting plate designed for Class 2 low voltage circuit applications where a traditional electrical box is not required. It provides a clean, finished wall opening for low voltage wiring such as data, audio, video, or communications cabling. The plate installs into drywall using a standard drywall saw and screwdriver — no electrical box needed. Flexible metal tabs bend behind the wall surface to secure the plate, and included screws fasten through slotted holes for a snug, professional fit. Licensed electricians and low voltage technicians are the typical installers.

The LVWP1 is suited for Old Work retrofit applications in residential and light commercial settings where low voltage Class 2 circuits are being run through finished drywall. It is part of the LVWP series, which is also available in a 2-gang configuration. Typical use cases include speaker wire terminations, network drops, coaxial cable outlets, and other low voltage rough-in points that do not carry line voltage.

Key Features

• Eliminates the need for a traditional electrical box on Class 2 low voltage circuits
• Old Work design installs into existing finished drywall without demolition
• Bendable mounting tabs secure behind the drywall surface for a flush hold
• Slotted holes and included screws allow for straightforward, tool-minimal installation
• 1-gang configuration fits standard single-device wall plate openings

Compatibility

Designed as an OEM-style mounting solution for 1-gang low voltage Class 2 circuit applications in standard drywall construction.

Installation Notes

Installation is typically performed by a licensed electrician or low voltage technician in accordance with NEC Class 2 circuit requirements. Ensure no line voltage wiring occupies the same opening before cutting into the wall. Use a drywall saw to make the rectangular cutout, bend the tabs inward before inserting the plate, and fasten with the included screws through the slotted holes. Do not use this plate with line voltage circuits.

Technical Specifications

• Gang Size: 1-Gang
• Application: Old Work
• Circuit Type: Class 2 Low Voltage
• UPC: 835243006799

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: LVWP1
