Orbit Industries LVC-12 Stranded Landscape Lighting Low Voltage Cable 150 Volt 500-ft Wooden Reel

Product Description

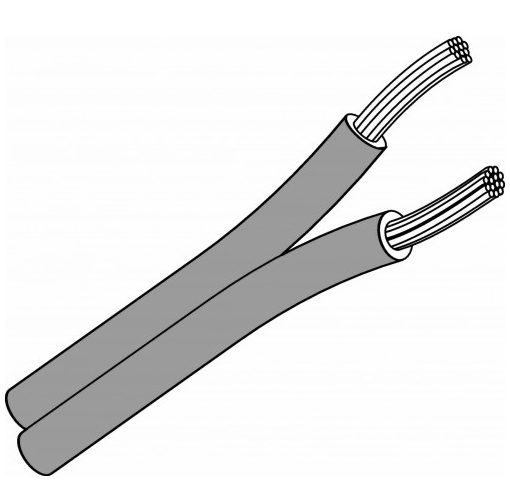

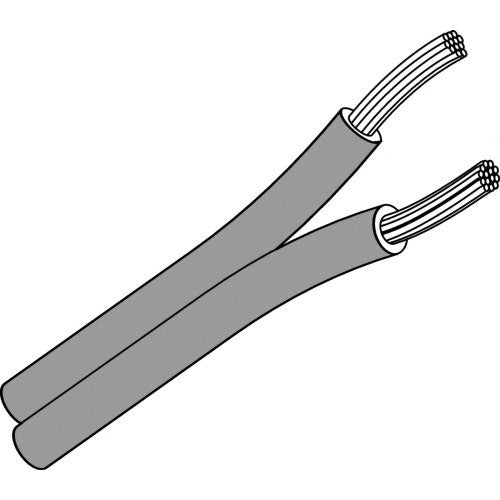

The Orbit Industries LVC-12 is a 12/2 500-ft landscape lighting low voltage cable with a voltage rating of 150V. Features 0.045-Inch thick PVC insulation and operates at a temperature of 60 deg C. Constructed with annealed bare copper, this cable is suitable for direct-burial applications and is UL/cULus listed. The cable has 65x30 stranding.

• 65x30-Stranded cable
• Ensures resistance against sunlight
• Rated for outdoor

Product Highlights

This low voltage cable is ideal for direct-burial landscape lighting applications and is sunlight resistant.

Product Information

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: LVC-12

Technical Specifications

• UPC: 83524300267
• UNSPSC: 26121600
• Manufacturer Part Number: LVC-12
• Manufacturer Name: Orbit Industries
• Strands: 65x30
• Packing Type: Wooden Reel
• Brand Name: Orbit Industries
• Number of Conductors: 2
• Length: 500 ft
• Item Name: Low Voltage Cable
• Insulation Thickness: 0.045 Inch
• Insulation Material: PVC
• Environmental Conditions: Outdoor
• Standards: UL E482742 Listed, cULus Certified
• Stranded/Solid: Stranded
• Voltage Rating: 150 Volt
• Wire Gauge Size: 12 AWG
• Type: Landscape Lighting
• Temperature Rating: 60 deg C
• Conductor Material: Annealed Bare Copper
• Operating Voltage: 150V
• Stranding: 65/30 BC
