Orbit Industries LT90-100 Liquid Tight Connector 90 Degree 1 in

Product Description

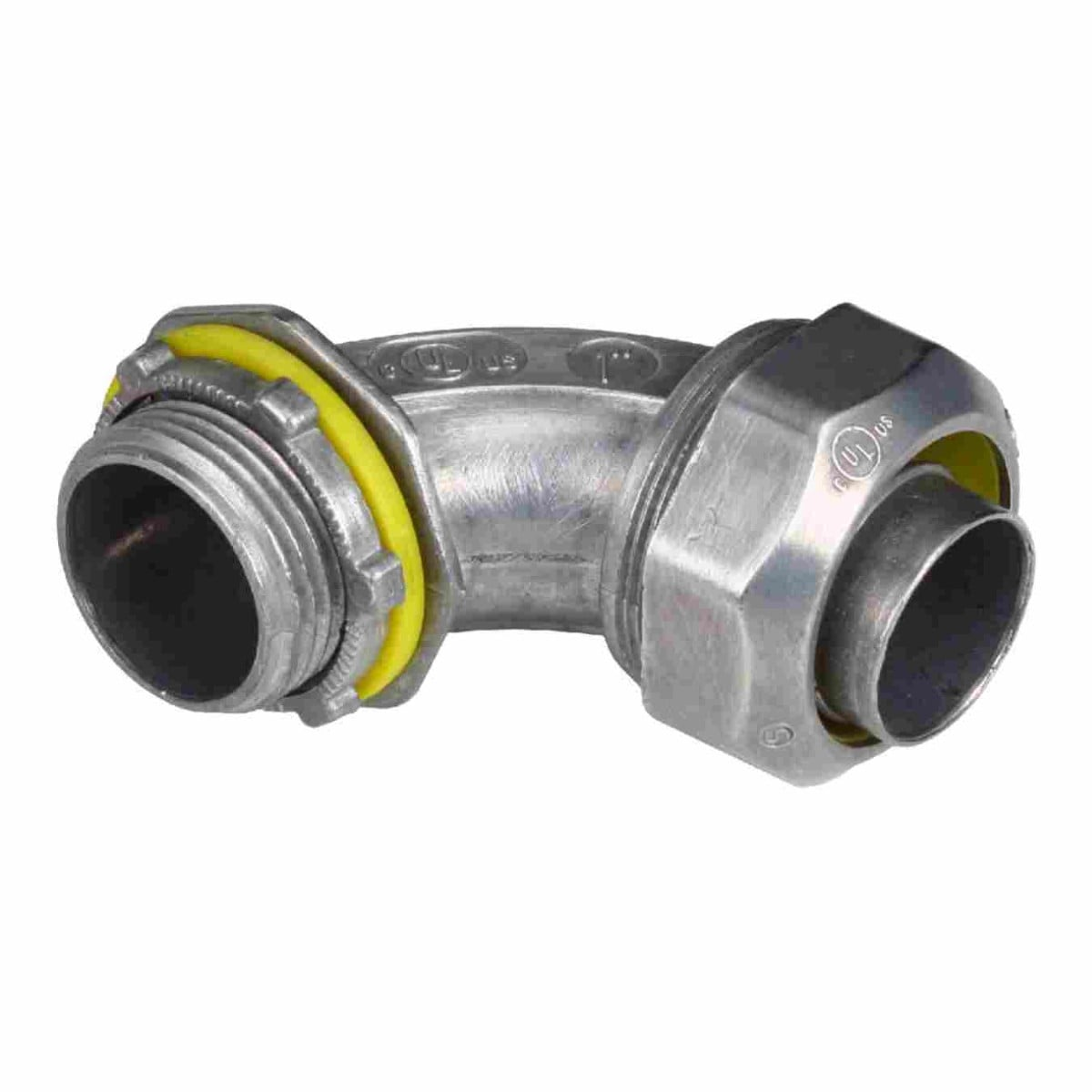

The ORBIT INDUSTRIES LT90-100 is a 90-degree liquid tight connector manufactured from zinc die-cast construction. It accepts 1-inch trade size liquid tight conduit and provides a secure, weatherproof termination point where conduit meets an enclosure or junction box. The 90-degree angle body is suited for installations where a straight connector would create a tight bend radius or conflict with surrounding equipment. Electricians use this fitting to terminate flexible conduit runs in applications requiring a sealed, liquid-resistant connection.

This connector is intended for use in both residential and commercial electrical installations where liquid tight flexible conduit must be routed into enclosures, panels, or equipment housings. The 90-degree configuration is commonly used when conduit enters a box from the side or bottom, or where space constraints prevent a straight entry. It is appropriate for indoor and outdoor service environments where moisture resistance at the connection point is required.

Key Features

• 90-degree angle body allows conduit termination in tight or confined spaces
• Zinc die-cast construction provides durability and corrosion resistance
• 1-inch trade size fits standard 1-inch liquid tight flexible conduit
• Compatible with both metallic and nonmetallic Type B liquid tight conduit
• Liquid-tight seal at the conduit-to-enclosure interface

Compatibility

Designed for use with metallic and nonmetallic Type B liquid tight flexible conduit in 1-inch trade size.

Installation Notes

Installation is performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize the circuit and verify absence of voltage before working on any enclosure or panel where this fitting will be installed. Hand-tighten the connector body, then snug with pliers or a strap wrench — avoid over-tightening zinc fittings, which can crack the body or damage threads. Verify the conduit sealing ring is properly seated to maintain the liquid-tight rating after installation.

Technical Specifications

• Trade Size: 1 inch
• Connector Angle: 90 degrees
• Material: Zinc Die-Cast
• Conduit Type Compatibility: Metallic and Nonmetallic Type B Liquid Tight
• UPC: 835243030343

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: LT90-100
