Orbit Industries LL-100AS Ll Series Conduit Body 1 Inch

Product Description

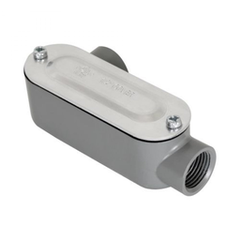

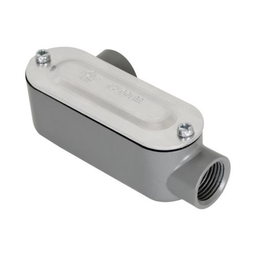

The ORBIT INDUSTRIES LL-100AS is an LL-type threaded aluminum conduit body supplied with a stamped aluminum cover and watertight gasket. It is designed for use in rigid metal conduit and IMC systems where a directional change is required without bending large-diameter conduit. The removable cover simplifies wire pulling, feed-through, and general maintenance access. A powder-coated finish combined with the included gasket provides a weatherproof seal suitable for exposed or service-entrance installations. Licensed electricians install this fitting as part of a complete conduit assembly in both indoor and outdoor applications.

This conduit body is commonly installed at service entrances, panel feeds, and branch circuit runs where conduit routing must change direction. It eliminates the need for costly mechanical conduit bending on larger trade sizes. The smooth interior radius allows wires to be seated without sharp bends that can damage insulation. It is suited for residential and light commercial electrical work where threaded rigid or IMC conduit systems are specified.

Key Features

• LL-type body configuration for 90-degree horizontal direction changes
• Threaded entry compatible with rigid metal conduit and IMC
• Stamped aluminum cover included for easy removal and reinstallation
• Watertight gasket provides weatherproof seal for outdoor and service-entrance use
• Powder-coated finish adds corrosion resistance
• UL Listed (File Number E227970) and RoHS compliant

Compatibility

Designed for use with 1 inch trade size threaded rigid metal conduit and IMC conduit systems in standard electrical installations.

Installation Notes

Installation must be performed by a qualified electrician in accordance with the National Electrical Code (NEC). De-energize all circuits completely before opening, pulling wire, or servicing any conduit body. Ensure threaded connections are fully engaged and the gasket is properly seated before closing the cover to maintain the weatherproof rating. The cover screws should be tightened evenly to compress the gasket uniformly without distorting the cover.

Technical Specifications

• Trade Size: 1 inch
• Conduit Body Type: LL
• Cover Type: Stamped Aluminum
• Gasket: Included, watertight
• Finish: Powder-coated
• Certifications: UL Listed (File E227970), RoHS
• Standard Package Quantity: 5
• Master Carton Quantity: 20

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: LL-100AS
