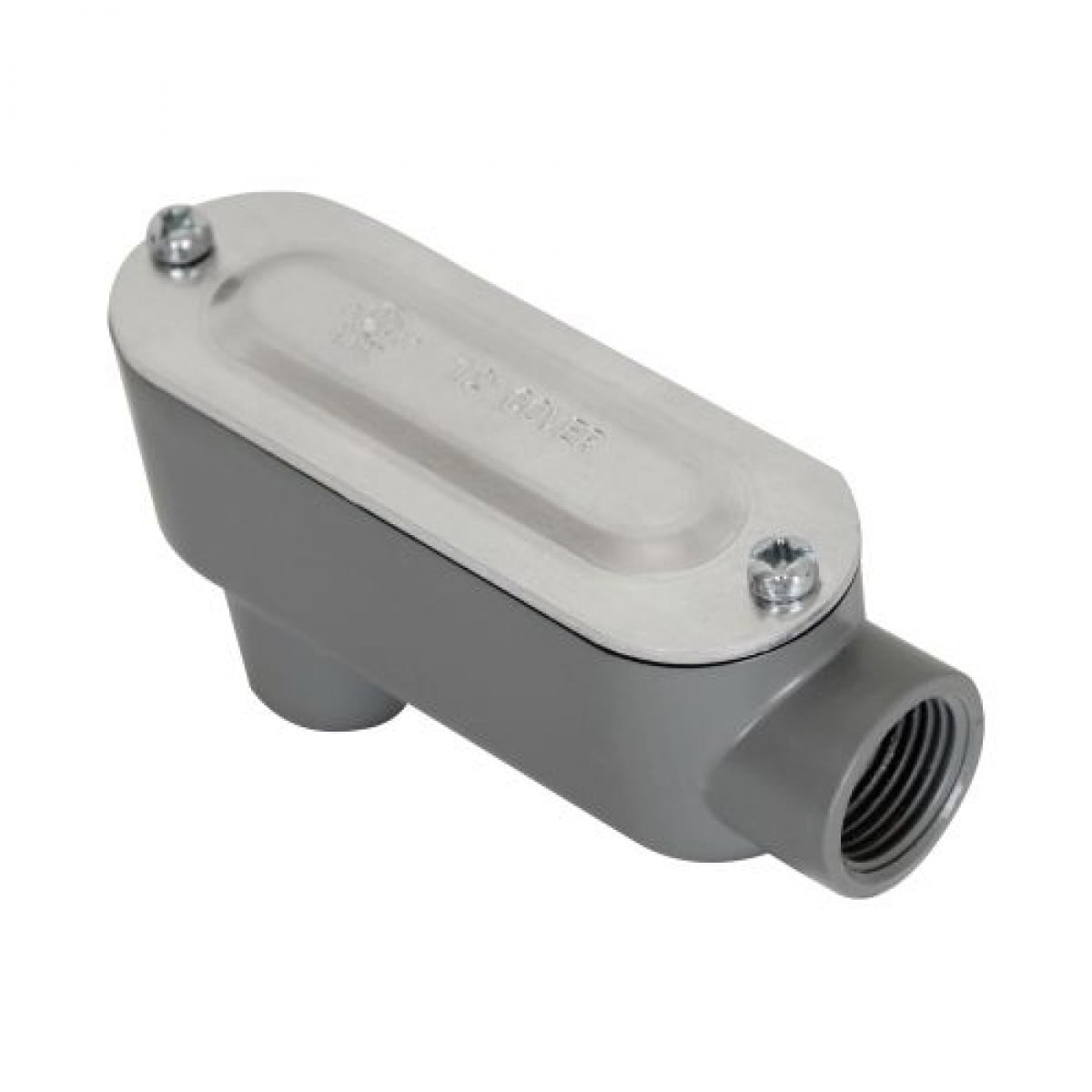

Orbit Industries LB-100AS Type Lb Aluminum Conduit Body 1 in

Product Description

The ORBIT INDUSTRIES LB-100AS is a Type LB aluminum threaded conduit body designed for use with threaded rigid conduit and IMC conduit systems. It ships with a stamped aluminum cover and a water-tight gasket, making it suitable for weatherproof installations. The removable cover allows straightforward wire pulling and feed-through without disassembling the conduit run. This fitting carries a 1 inch trade size and is installed by licensed electricians wherever a conduit run requires a change of direction without bending large-diameter conduit.

The LB-100AS is used in residential and light commercial electrical work, particularly at service entrance locations where conductors must transition direction. It also functions as a convenience pull box when additional wire capacity is needed along a conduit run. The smooth interior radius allows conductors to follow the change in direction without sharp bends that could damage insulation. Its aluminum construction and powder-coated finish make it appropriate for both indoor and outdoor applications where a durable, corrosion-resistant fitting is required.

Key Features

• Type LB configuration allows a 90-degree change of direction in a conduit run
• Aluminum body with powder-coated finish for corrosion resistance in outdoor and damp locations
• Includes stamped aluminum cover and water-tight gasket for weatherproof installations
• Removable cover simplifies wire pulling, conductor feed-through, and routine maintenance
• Compatible with threaded rigid metallic conduit and IMC at 1 inch trade size
• Eliminates the need to bend large conduit, reducing labor time and material stress

Compatibility

Designed as an OEM-style fitting for use with 1 inch trade size threaded rigid metallic conduit and intermediate metal conduit (IMC) installations.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the circuit and verify the absence of voltage before opening any conduit body on an existing system. Hand-tighten the conduit connections and verify the gasket is properly seated before securing the cover to maintain the weatherproof rating. Do not overtighten the cover screws, as this may damage the gasket or distort the stamped aluminum cover.

Technical Specifications

• Trade Size: 1 inch
• Body Type: LB
• Body Material: Aluminum
• Cover Material: Stamped Aluminum
• Includes: Stamped aluminum cover and gasket
• Finish: Powder-coated
• Conduit Compatibility: Threaded rigid metallic conduit, IMC
• UPC: 835243029460

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: LB-100AS
