Orbit Industries HDB-1-MKO Steel Handy Box 2x4 Mko Knockouts

Product Description

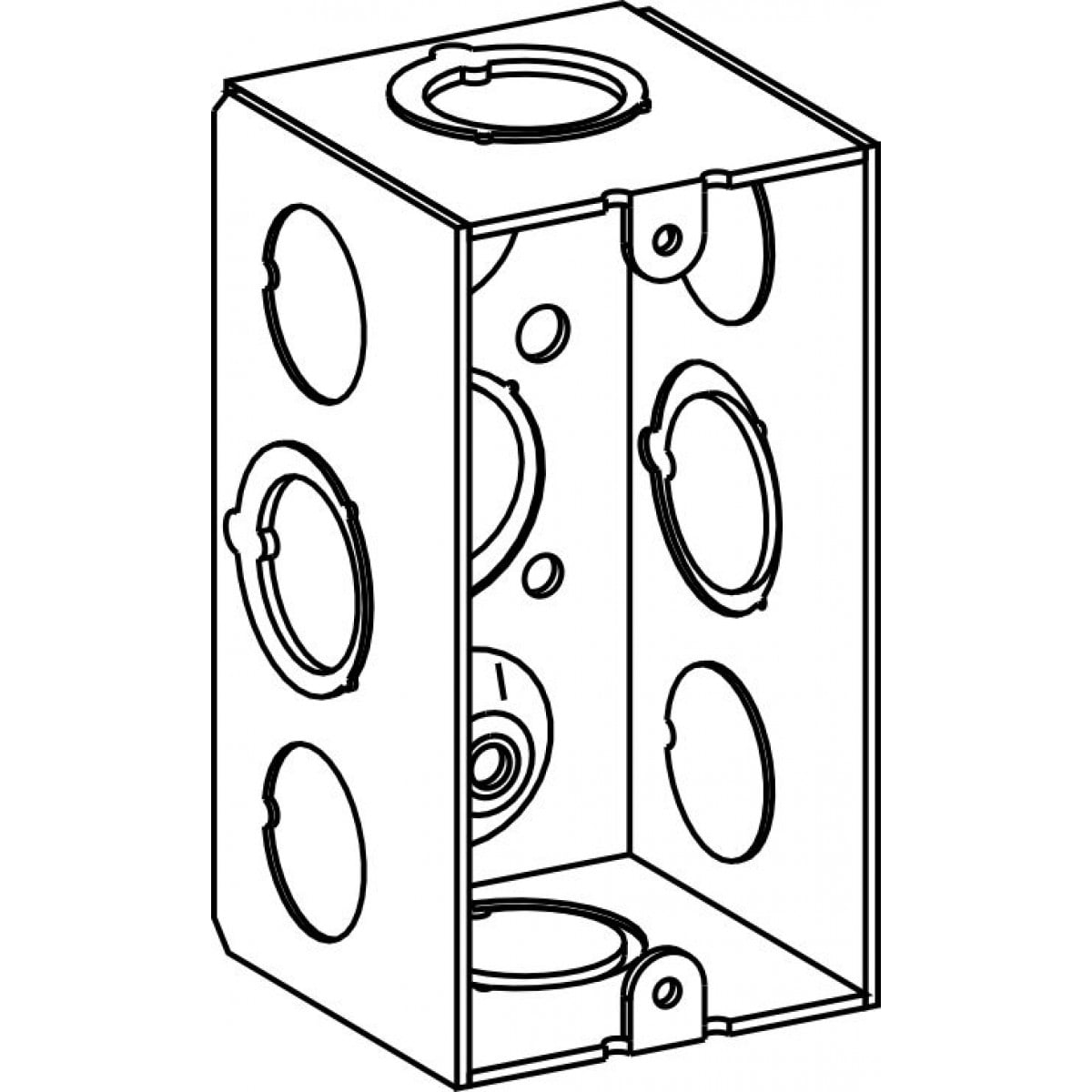

The ORBIT INDUSTRIES HDB-1-MKO is a steel handy box designed for residential and commercial electrical wiring installations. Constructed from 16-gauge galvanized sheet steel, this switch box measures 2 inches wide by 4 inches long by 2-1/8 inches deep, providing adequate volume for device wiring and terminations. Knockout configurations include four 1/2-inch knockouts and four MKO knockouts on the sides, plus one 1/2-inch knockout and one MKO knockout on the bottom, giving installers flexible conduit entry options. Licensed electricians use this box as a standard wiring device enclosure for switches, outlets, and junction applications.

This handy box suits typical branch-circuit wiring tasks in both residential and light commercial settings. The galvanized steel finish provides corrosion resistance suitable for dry and damp interior locations. Side and bottom knockout options accommodate 1/2-inch conduit or cable entries in multiple orientations, making it adaptable to a range of rough-in configurations. It is a common choice for exposed-surface or flush-wall installations where a single-gang device mounting platform is required.

Key Features

• 16-gauge galvanized sheet steel construction for durability and corrosion resistance
• Box dimensions: 2 inches x 4 inches x 2-1/8 inches deep
• Side knockouts: four 1/2-inch and four MKO entries for flexible conduit routing
• Bottom knockouts: one 1/2-inch and one MKO entry
• Standard handy-box form factor compatible with single-gang device covers

Compatibility

Designed as an OEM-style replacement and standard-fit handy box for residential and commercial electrical switch and outlet installations requiring a 2 inches x 4 inches steel enclosure.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the circuit at the panel before beginning any wiring work inside the box. Use appropriate knockout punches or pliers to remove only the knockouts needed for conduit or cable entry, and install listed fittings at each entry point. Do not exceed the box fill capacity as calculated per NEC Article 314.

Technical Specifications

• Material: 16-gauge galvanized sheet steel
• Box Dimensions: 2 inches x 4 inches x 2-1/8 inches deep
• Side Knockouts: Four 1/2 inches, four MKO
• Bottom Knockouts: One 1/2 inches, one MKO
• UPC: 835243001084

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: HDB-1-MKO
