Orbit Industries HB-1-MKO Switch Box 2x4x1-7/8 in Galvanized Steel

Product Description

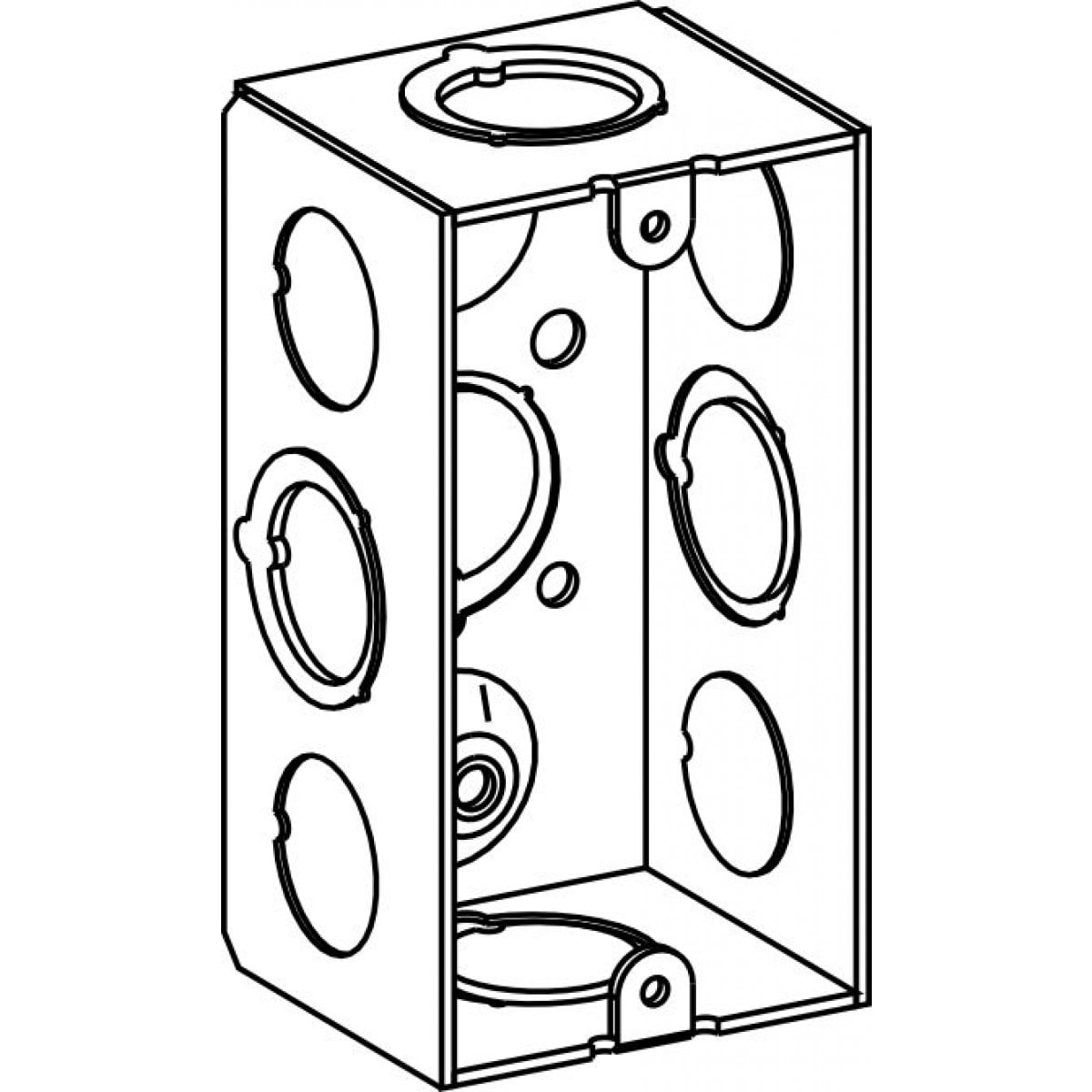

The ORBIT INDUSTRIES HB-1-MKO is a welded steel handy box designed for use in standard residential and commercial electrical wiring installations. Measuring 2 inches x 4 inches x 1-7/8 inches deep, this single-gang box is formed from 16-gauge sheet steel with a galvanized finish for corrosion resistance. It ships ready to use with a full knockout layout on the sides and bottom, giving electricians flexible conduit entry options without additional prep work. The compact 1-7/8-inch depth suits shallow-wall and surface-mount scenarios where a deeper box is not an option.

This handy box is suited for both residential and light commercial rough-in wiring. It is commonly used for device mounting, junction applications, and conduit system entry points where a single-gang form factor is required. The galvanized steel construction holds up in damp or exposed interior locations. Side knockouts accommodate 1/2-inch conduit and MKO entries on four positions each, while the bottom provides one 1/2-inch knockout and one MKO for additional routing flexibility.

Key Features

• Welded 16-gauge sheet steel construction for rigid, durable form
• Galvanized finish for corrosion resistance in interior and damp-rated locations
• Side knockouts: four 1/2-inch and four MKO entries for flexible conduit routing
• Bottom knockouts: one 1/2-inch and one MKO for additional entry options
• Single-gang, 1-7/8-inch depth suits shallow-wall and surface-mount applications
• Box dimensions: 2 inches x 4 inches x 1-7/8 inches deep

Compatibility

Designed as an OEM-style handy box for use with standard 1/2-inch EMT, rigid metal conduit, and MKO fittings in single-gang residential and commercial electrical installations.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Shut off and verify the absence of voltage on all circuits before beginning work. Secure conduit entries with approved fittings before pulling wire. Ensure the box is properly supported per NEC mounting requirements before securing devices.

Technical Specifications

• Box Dimensions: 2 inches x 4 inches x 1-7/8 inches deep
• Material: 16-gauge sheet steel
• Finish: Galvanized
• Construction: Welded
• Gang Configuration: Single gang
• Side Knockouts: Four 1/2 inch, four MKO
• Bottom Knockouts: One 1/2 inch, one MKO
• UPC: 835243000995

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: HB-1-MKO
