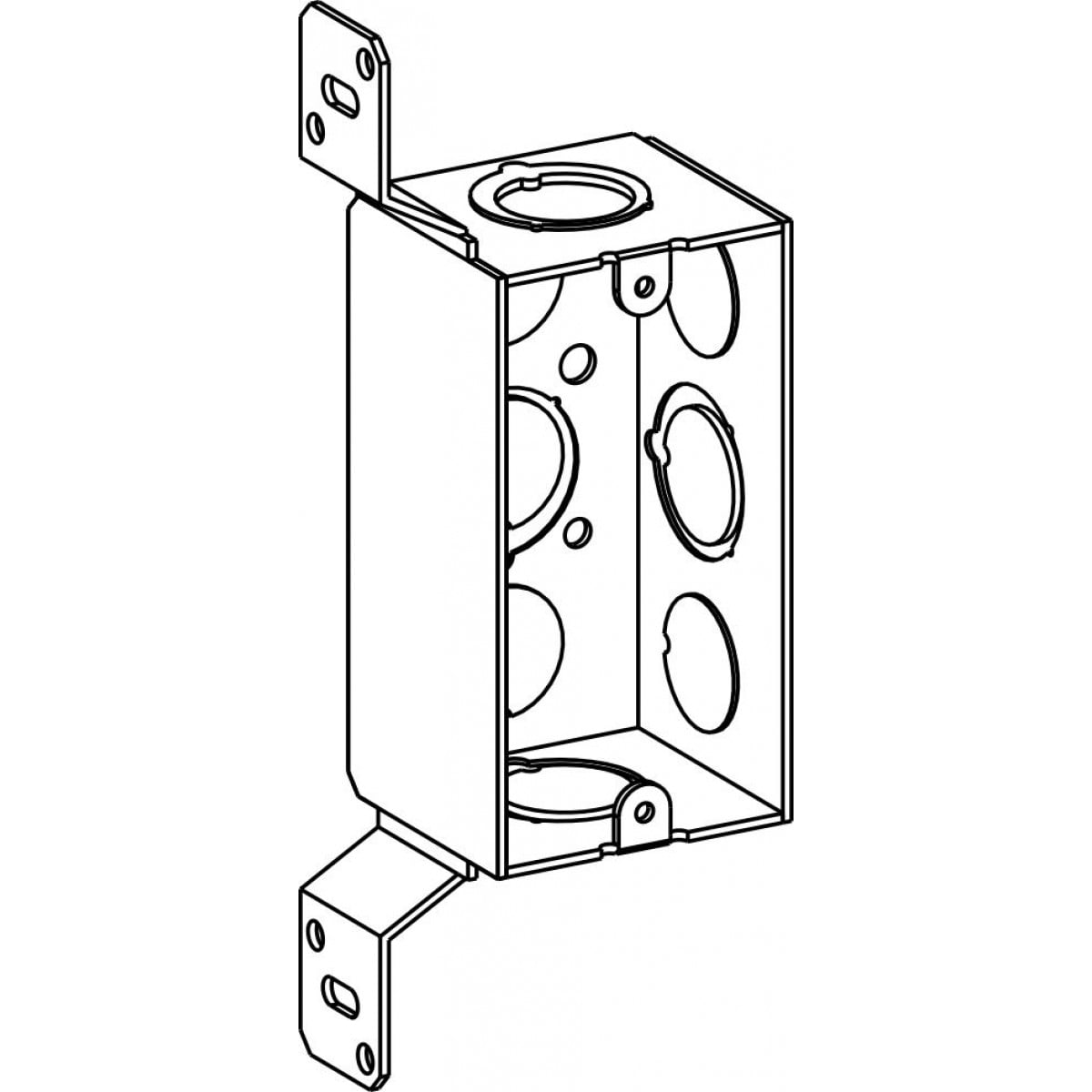

Orbit Industries HB-1-MKO-FB Steel Handy Box Flat Bracket

Product Description

The ORBIT INDUSTRIES HB-1-MKO-FB is a welded steel handy box designed for residential and commercial electrical wiring installations. It measures 2 inches wide by 4 inches tall by 1-7/8 inches deep and is fabricated from 16-gauge galvanized sheet steel. The flat bracket (FB) mounting configuration makes it suitable for surface or stud-face mounting in standard rough-in applications. Knockout options are provided on multiple sides for flexible conduit or cable entry. Licensed electricians install this box as part of branch circuit rough-in work in both new construction and retrofit projects.

This handy box is used in residential and light commercial wiring installations where a single-gang device box is required. The galvanized finish provides corrosion resistance in typical indoor environments. The included flat bracket allows direct mounting to structural members. Knockout layout accommodates common 1/2-inch trade-size conduit and cable connectors on the sides and bottom, giving the installer routing flexibility without additional field modification.

Key Features

• Welded 16-gauge galvanized sheet steel construction for durability
• Flat bracket (FB) mounting for stud-face or surface installation
• Side knockouts: (2) 1/2 inch, (3) MKO
• Bottom knockouts: (2) 1/2 inch, (1) MKO
• 1-7/8 inch depth suits standard single-gang device applications
• Galvanized finish provides corrosion resistance for indoor use

Compatibility

Designed as an OEM-style replacement or new-installation handy box compatible with standard 1/2-inch trade-size conduit fittings and cable connectors used in residential and commercial electrical rough-in work.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the circuit at the panel before making any connections inside the box. Secure the flat bracket firmly to the mounting surface before pulling conductors. Do not overload the box fill capacity as calculated per NEC Article 314.

Technical Specifications

• Box Dimensions: 2 inches x 4 inches x 1-7/8 inches deep
• Material: 16-gauge galvanized sheet steel
• Construction: Welded
• Finish: Galvanized
• Side Knockouts: (2) 1/2 inch, (3) MKO
• Bottom Knockouts: (2) 1/2 inch, (1) MKO
• Mounting Type: Flat bracket (FB)
• UPC: 835243001015

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: HB-1-MKO-FB
