Orbit Industries GS-1032-PT Ground Screw 10-32 Green Tail

Product Description

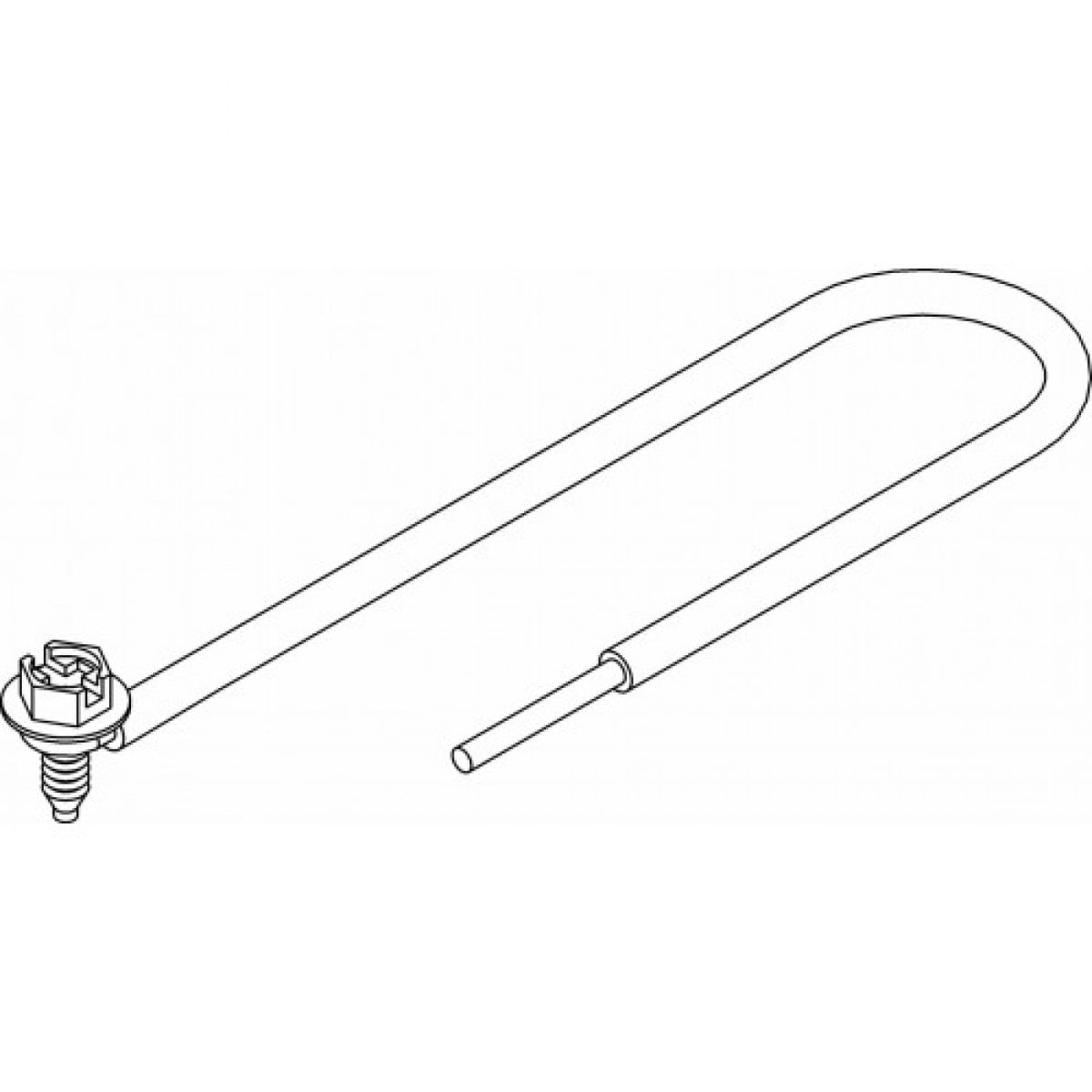

The ORBIT INDUSTRIES GS-1032-PT is a 10-32 x 3/8 inch ground screw with a 12-inch green pigtail tail lead, designed for grounding applications in electrical enclosures, panels, and junction boxes. The screw features a combination slotted, Phillips, and hex washer head, giving installers flexibility in driver choice during termination. The green tail identifies the conductor as a dedicated equipment grounding conductor in accordance with standard electrical color-coding practice. Electricians and electrical contractors use this type of hardware when bonding metal enclosures, device boxes, and equipment frames to the grounding system.

This ground screw is suited for residential and light commercial electrical work where a reliable, code-compliant equipment ground connection is required inside metal boxes, enclosures, or panels. The pre-attached 12-inch green lead provides sufficient length for routing to a grounding bus or grounding conductor without splicing. The 10-32 thread size is the industry-standard thread for equipment grounding screws used in electrical boxes and enclosures.

Key Features

• 10-32 x 3/8 inch thread size matches standard grounding holes in electrical enclosures
• Combination slotted, Phillips, and hex washer head accepts multiple driver types
• 12-inch green pigtail tail lead included for direct connection to grounding conductor
• Green color coding identifies the conductor as an equipment grounding conductor per NEC convention
• Hex washer head seats flush and resists loosening under vibration

Compatibility

Designed as an OEM-style replacement or standard-install ground screw for metal electrical boxes, junction boxes, and enclosures that accept a 10-32 threaded grounding screw.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize the circuit and verify voltage absence with a meter before working inside any enclosure. Drive the screw into the designated 10-32 grounding hole until the washer head seats firmly against the enclosure surface, then secure the green tail to the grounding conductor or bus. Do not overtighten to the point of stripping the threaded grounding hole.

Technical Specifications

• Thread Size: 10-32
• Screw Length: 3/8 inches
• Tail Lead Length: 12 inches
• Head Type: Slotted / Phillips / Hex Washer
• Color: Green
• UPC: 835243011670

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: GS-1032-PT
