Orbit Industries GDB-1-MC-FB 3-1/2 inches Gang Switch Box

Product Description

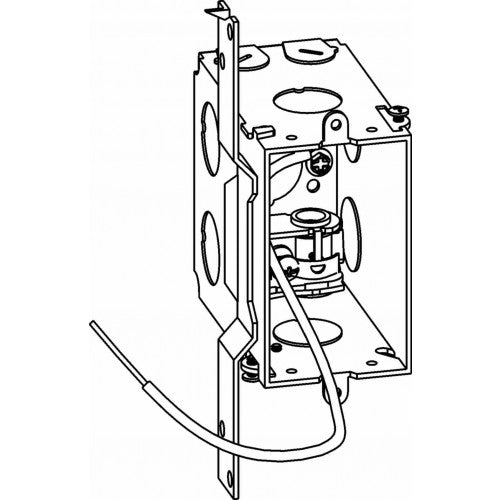

The ORBIT INDUSTRIES GDB-1-MC-FB is a 3-1/2 inch deep, gangable 1-gang switch box constructed from durable 16 gauge galvanized sheet steel. This box features MC clamps for metal clad cables and a 9/16 inch setback FB bracket for mounting. It offers an 18 cubic inch capacity and is approved to UL 514A and UL (Canada and US) standards, ensuring compliance and safety for electrical installations. It is also RoHS compliant.

• Gangable design for flexible installation configurations.
• Constructed from 16 gauge galvanized sheet steel for durability.
• Includes preassembled 7 inch 12 AWG solid copper pigtail and #10-32 TPI ground screw.

Product Highlights

3-1/2 inch deep, gangable 1-gang switch box with MC clamps and FB bracket.

Product Information

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: GDB-1-MC-FB

Technical Specifications

• Product Type: Gangable Switch Box
• Material: 16 Gauge Galvanized Sheet Steel
• Depth: 3-1/2 Inch
• Gangs: 1
• Approval: UL 514A, UL (Canada and Us)
• Mounting: 9/16 Inch Setback FB Bracket
• Capacity: 18 Cu Inch
• Knockout Size (Bottom): 1/2 Inch (1)
• Knockout Size (Side): 1/2 Inch (4)
• Knockout Size (End): 1/2 Inch (2), Loom Pryout End (4)
• Total Knockouts: 11
• Clamp Type: Metal Clad Cable
• Compliance: RoHS Compliant
• Included Components: Preassembled 7 Inch 12 AWG Solid Copper Pigtail and #10-32 TPI Ground Screw
• UL File Number: E227970
