Orbit Industries GBLL-75 Ground Bushing With Lay-In Lug 3/4 Inch #14-#4

Product Description

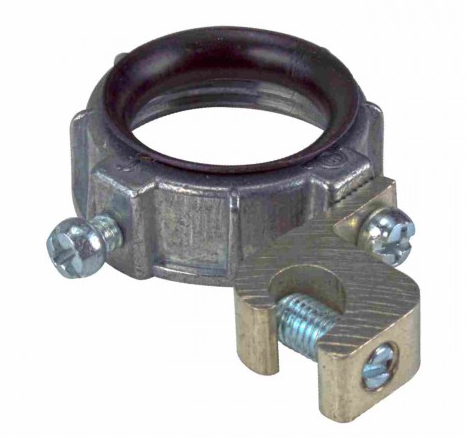

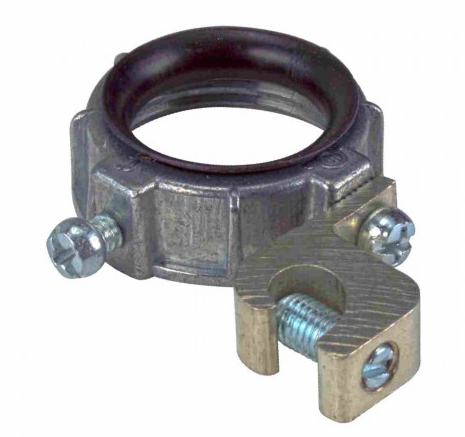

The ORBIT INDUSTRIES GBLL-75 Ground Bushing is a die-cast zinc component designed for terminating service conduit to electrical cabinets. It features an insulated universal lay-in lug, facilitating the bonding of jumpers to neutral busbars. This 3/4 inch trade size bushing accommodates wire sizes from 14 to 4 AWG and includes a plastic liner to prevent damage to wire insulation, rated for 105 degrees Celsius operation.

• Insulated universal lay-in lug for secure connections
• Used with locknut to terminate service conduit to the cabinet
• Lug provided for bonding jumper to neutral busbar

Product Highlights

Die-cast zinc grounding bushing with insulated lay-in lug for secure conduit termination and wire protection.

Product Information

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: GBLL-75

Technical Specifications

• Category: Grounding & Bonding Equipment
• Material: Die-Cast Zinc
• Wire Size: 14 to 4 AWG
• Approval: UL 514B
• Diameter: 0.531 Inch
• Trade Size: 3/4 Inch
• Throat Type: Insulated
• Lug Type: Lay-in Lug
• Temperature Rating: 105 Deg C
