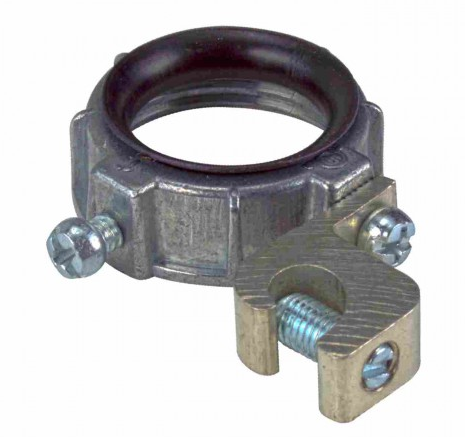

Orbit Industries GBLL-400 die cast zinc ground bushing 4 inch 1 pc

Product Description

The ORBIT INDUSTRIES GBLL-400 is a 4-inch die-cast zinc ground bushing, UL approved for Canada and US. It features an insulated throat and a lay-in lug, accommodating wire sizes from 6 AWG to 250 MCM. This bushing is designed for terminating service conduit to cabinets and facilitating bonding jumpers to the neutral busbar. Its plastic liner prevents wire insulation damage, and it is rated for 105°C.

• 4 inch trade size with insulated throat.
• Accommodates 6 AWG to 250 MCM wire sizes.
• Features a lay-in lug for bonding jumper to neutral busbar.

Product Highlights

Die-cast zinc ground bushing with insulated throat and lay-in lug for conduit termination and bonding.

Product Information

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: GBLL-400
• Country of Origin: China

Technical Specifications

• UPC: 835243030947
• Country of Origin: China
• Category: Grounding & Bonding Equipment
• Sub-Category: Grounding Bushing
• Material: Die-Cast Zinc
• Wire Size: 6 AWG to 250 MCM
• Approval: UL (Canada and US)
• Trade Size: 4 Inch
• Throat Type: Insulated
• Lug Type: Lay-in
• Screw Size: 1/4 Inch-32 UNC X 0.37 RHPF
• Temperature Rating: 105 Deg C (Throat)
