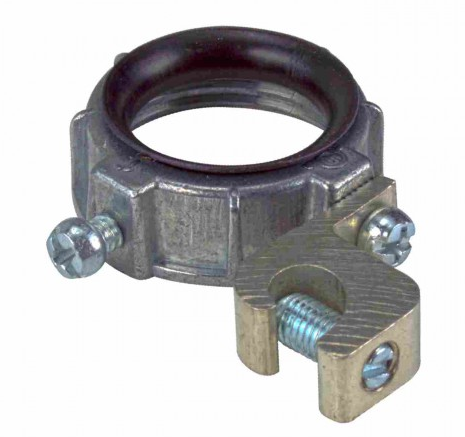

Orbit Industries GBLL-400-10 Ground Bushing 4 inch

Product Description

The ORBIT INDUSTRIES GBLL-400-10 Ground Bushing is a 4-inch insulated universal lay-in lug designed for terminating service conduit to a cabinet with a locknut. This die-cast zinc bushing includes a lug for bonding the jumper to the neutral busbar, ensuring proper grounding and bonding. Its plastic liner protects wire insulation, and it is rated for 105°C operation. It accommodates wire sizes from 14 to 1/0 AWG.

• Insulated universal lay-in lug design
• Used with locknut to terminate service conduit to the cabinet
• Lug provided for bonding the jumper to the neutral busbar

Product Highlights

Features a 105°C temperature rating and a plastic liner to prevent wire insulation damage.

Product Information

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: GBLL-400-10

Technical Specifications

• Product Type: Ground Bushing
• Size: 4 inch
• Category: Grounding & Bonding Equipment
• Material: Die-cast zinc
• Wire Size: 14 to 1/0 AWG
• Approval: UL 514B, UL (Canada and US)
• Throat Type: Insulated
• Lug Type: Lay-in
• Temperature Rating: 105 Deg C
