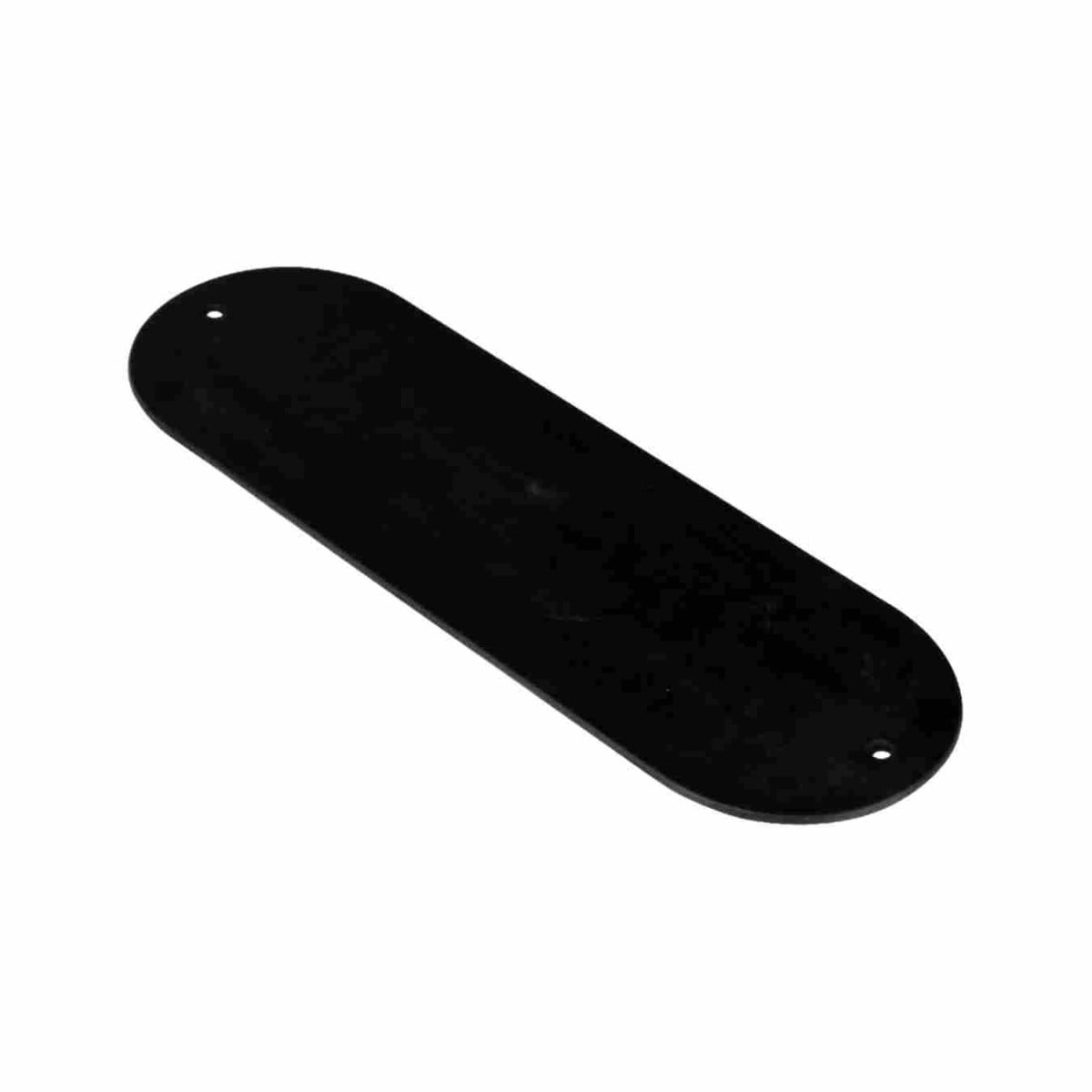

Orbit Industries G-75 Conduit Body Neoprene Gasket 3/4 Inch

Product Description

The ORBIT INDUSTRIES G-75 is a neoprene gasket designed to create a dust-tight seal between a conduit body and its cover. At 3/4 inch trade size, this gasket fits standard cast aluminum and malleable iron conduit bodies used in electrical raceway systems. Electricians and electrical contractors install these gaskets during conduit body assembly to maintain enclosure integrity in environments where dust infiltration must be controlled. The neoprene material provides flexible, durable compression sealing without hardening under typical service conditions.

This gasket is suited for use in residential, commercial, and light industrial electrical installations where 3/4 inch conduit bodies are part of the raceway layout. It is a direct replacement or spare component used when re-sealing conduit bodies after inspection, wire pulling, or maintenance. Cast aluminum and malleable iron conduit body types are the primary applications for this gasket.

Key Features

• Neoprene construction provides flexible, compressible sealing under conduit body cover hardware
• Designed for dust-tight seal between conduit body and cover
• Compatible with cast aluminum and malleable iron conduit bodies
• 3/4 inch trade size fits standard 3/4 inch conduit body openings

Compatibility

Designed for use with cast aluminum and malleable iron conduit bodies at 3/4 inch trade size.

Installation Notes

Installation is performed by licensed electricians in accordance with applicable NEC requirements for conduit body assemblies. De-energize all circuits in the affected conduit run before opening any conduit body. Seat the gasket flat against the conduit body flange before securing the cover to ensure an even, dust-tight seal. Inspect the gasket for tears or deformation during any re-entry service and replace if the material shows signs of compression set or damage.

Technical Specifications

• Trade Size: 3/4 inch
• Material: Neoprene
• Seal Type: Dust-tight
• UPC: 835243002265

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: G-75
