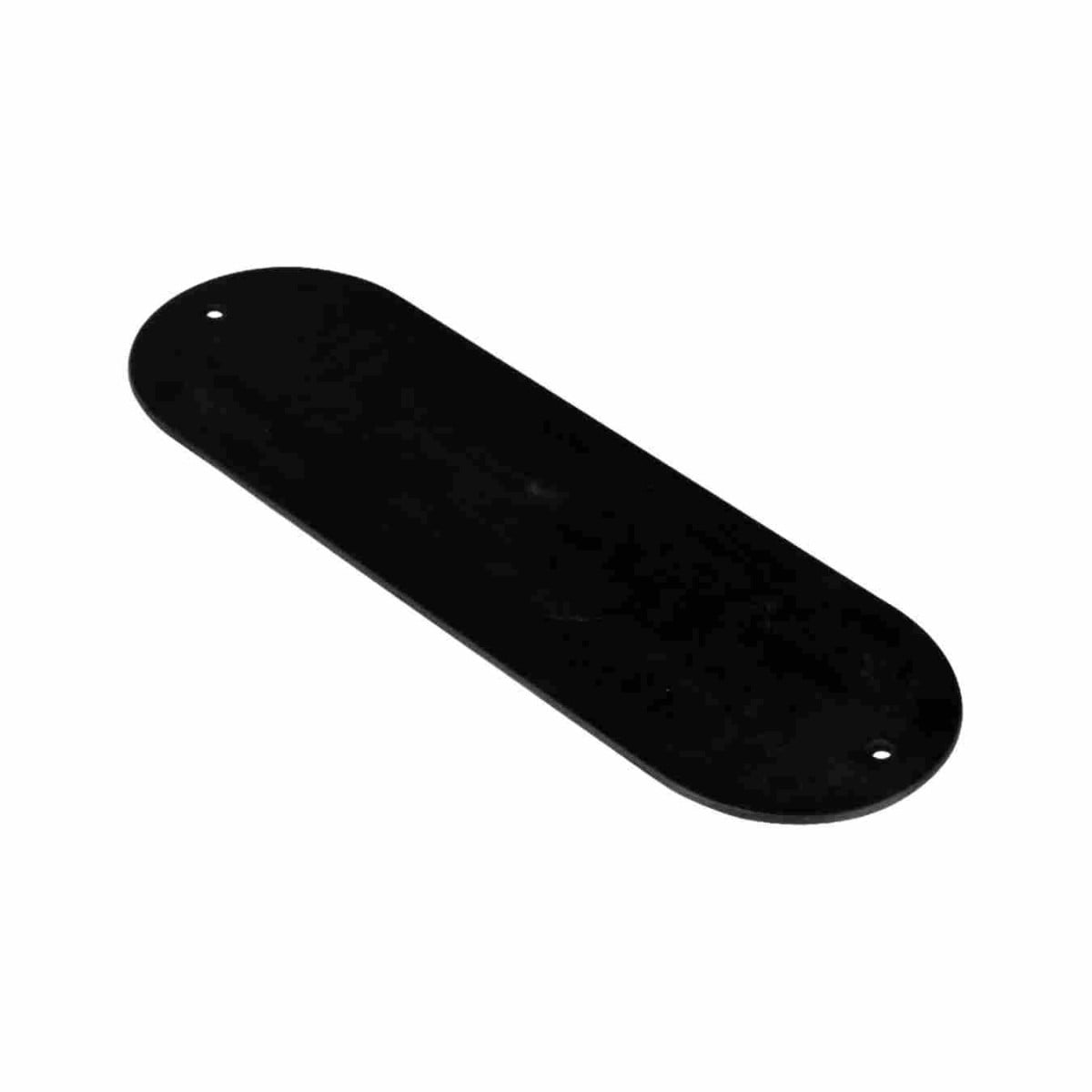

Orbit Industries G-100 Conduit Body Gasket 1 Inch

Product Description

The ORBIT INDUSTRIES G-100 is a neoprene conduit body gasket designed to create a dust-tight seal between a conduit body and its cover. Rated for 1-inch trade size conduit bodies, this gasket compresses to close gaps that would otherwise allow dust and debris to enter the enclosure. Electricians install this gasket during conduit body assembly wherever a dust-tight termination is required. The neoprene construction resists compression set and maintains its sealing properties across a range of service environments.

The G-100 is suited for use in commercial and industrial electrical installations where conduit bodies require a reliable dust-tight seal at the cover joint. It is compatible with cast aluminum and malleable iron conduit bodies commonly found in exposed conduit runs, junction points, and pull locations. This gasket is a straightforward replacement or service part stocked by electricians doing routine conduit body maintenance or new rough-in work.

Key Features

• Neoprene material provides durable compression sealing at conduit body cover interfaces
• Sized for 1-inch trade size conduit bodies
• Creates a dust-tight seal to protect interior conductors and connections
• Compatible with both cast aluminum and malleable iron conduit body housings
• Direct-fit replacement for worn or damaged OEM gaskets during maintenance

Compatibility

Designed for use with cast aluminum and malleable iron conduit bodies at 1-inch trade size, providing a dust-tight seal between the conduit body and its cover.

Installation Notes

Installation is performed by a licensed electrician. De-energize the circuit and verify absence of voltage before opening any conduit body. Seat the gasket evenly around the cover mating surface before securing cover screws to ensure a uniform seal. Follow applicable NEC requirements for the installation location and enclosure type.

Technical Specifications

• Trade Size: 1 inch
• Material: Neoprene
• Seal Type: Dust-tight
• Compatible Body Materials: Cast aluminum, malleable iron
• UPC: 835243002203

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: G-100
