Orbit Industries FSDB-NBH Fan Support Box 4x4 Steel

Product Description

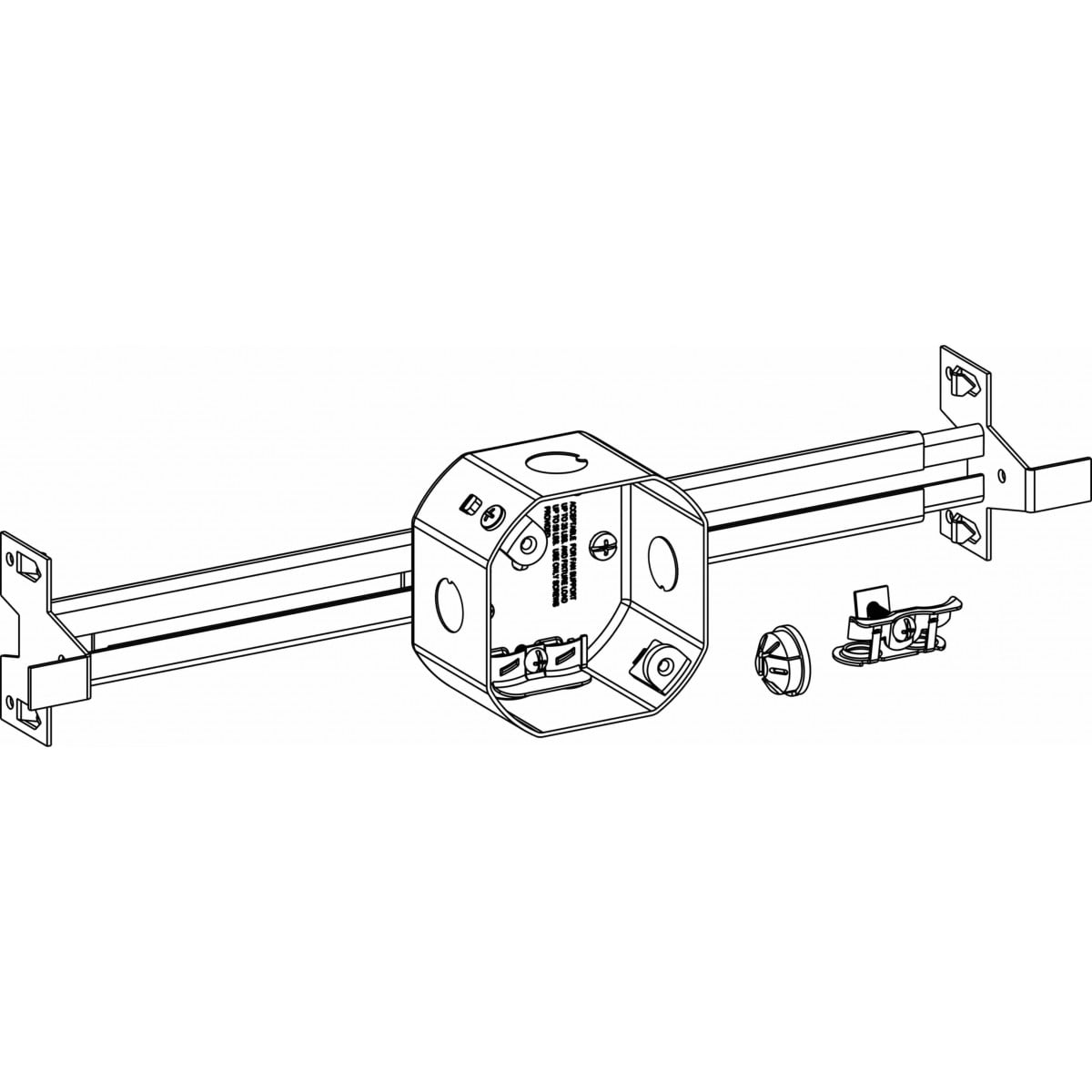

The ORBIT INDUSTRIES FSDB-NBH is a new construction fan support box designed for residential and commercial electrical wiring installations. Fabricated from 16-gauge sheet steel, this 4-inch by 4-inch by 2-1/8-inch box provides a rigid, code-ready mounting point for ceiling fans and light fixtures in new-frame construction. Three 1/2-inch knockouts and two loom knockouts are pre-formed into the housing, giving electricians the entry options needed for standard wiring runs without field modification. The adjustable bar hanger spans 16 inches to 24 inches, allowing single-person installation across standard and non-standard joist spacing without additional hardware.

This fan support box is suited for new construction framing where joists or ceiling structure is accessible before drywall. It is installed by licensed electricians during the rough-in phase of residential and light commercial projects. The adjustable hanger bar seats between joists and locks at the desired span, positioning the box flush for finish work. Typical applications include ceiling fan rough-in, light fixture mounting, and switch box placement in wood-frame construction.

Key Features

• 16-gauge sheet steel construction for rigid, durable support
• Box dimensions: 4 inches x 4 inches x 2-1/8 inches deep
• Adjustable hanger bar spans 16 inches to 24 inches to fit varied joist spacing
• Three 1/2-inch knockouts and two loom knockouts pre-formed for wiring flexibility
• Designed for new construction ceiling fan and fixture installations

Compatibility

Designed as an OEM-style replacement and new construction fitting for standard 4-inch square electrical boxes used in residential and light commercial ceiling fan or fixture rough-in applications.

Installation Notes

Installation is performed by a licensed electrician during the rough-in phase before drywall is applied. De-energize the circuit at the panel and verify with a voltage tester before making any wiring connections. The hanger bar must be seated securely between joists with the box positioned plumb before fastening. Work must comply with applicable NEC requirements for fan-rated box installations.

Technical Specifications

• Box Dimensions: 4 inches x 4 inches x 2-1/8 inches
• Material: 16-gauge sheet steel
• Knockouts: Three 1/2-inch knockouts, two loom knockouts
• Hanger Bar Span: 16 inches to 24 inches adjustable
• Application: New construction
• UPC: 835243012844

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: FSDB-NBH
