Orbit Industries FSDB Ceiling Fan Support Box 21.5 Cu In 5-Knockout 2-1/8 Inch Deep

Product Description

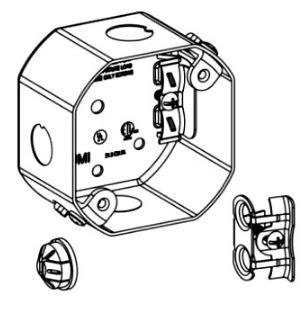

The ORBIT INDUSTRIES FSDB is a 2-1/8 inch deep, 4 inch by 4 inch octagon ceiling fan support box, constructed from 16 gauge sheet steel. This electrical outlet box has a 21.5 cubic inch capacity and features five knockouts, including three 1/2 inch and two loom sizes, located on three sides and two ends. It is designed for ceiling fan and light fixture installations, supporting BX/MC and non-metallic sheathed cables.

• RoHS Compliant for environmental safety.
• Constructed from durable 16 gauge sheet steel with an octagon shape.
• UL approved for Canada and US, ensuring safety standards.

Product Highlights

UL approved, RoHS compliant, 16 gauge steel octagon box for ceiling fan installations.

Product Information

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: FSDB
• Country of Origin: USA

Technical Specifications

• Shape: Octagon
• UNSPSC: 39121303
• Knockout Size: (3) 1/2 Inch, (2) Loom
• Number of Knockouts: 5
• Depth: 2-1/8 Inch
• Capacity: 21.5 Cubic Inch
• Clamp Type: BX/MC, Non Metallic Sheathed Cable
• Knockout Location: (3) Side, (2) End
• Category: Steel Outlet Boxes
• Type: Ceiling Fan
• Material: 16 Gauge Sheet Steel
• Approval: UL (Canada and Us)
• Compliance: RoHS Compliant
• Sub-Category: Octagon/Round Box - Steel
