Orbit Industries FSC4D Cable Snap Clip 0.468-0.562 in Od

Product Description

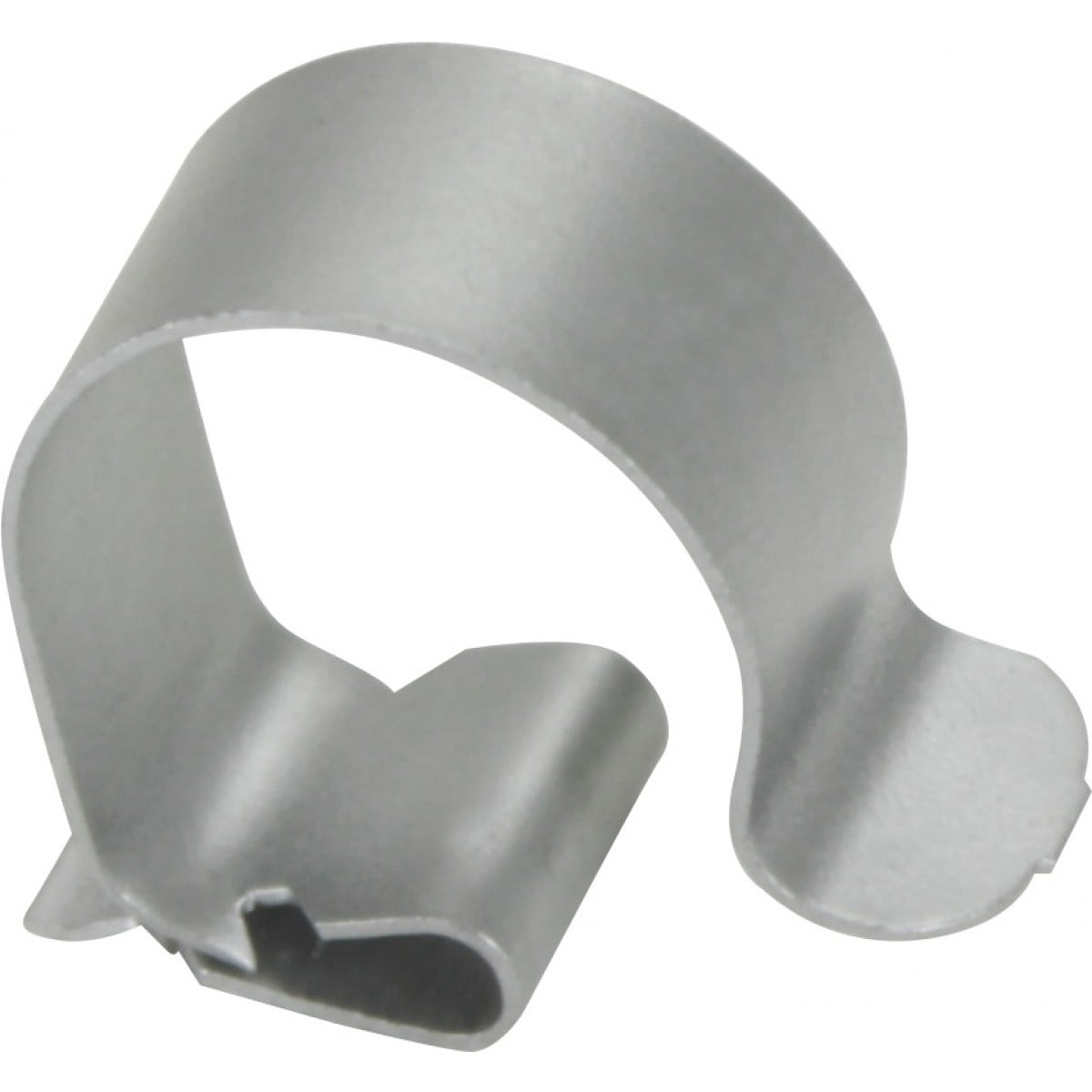

The ORBIT INDUSTRIES FSC4D is a cable snap clip designed to mount onto structural flanges and hold cables securely in place without requiring additional fasteners or hardware. The clip accommodates flange thicknesses from 3/16 inches to 9/32 inches and fits outer diameters ranging from 0.468 inches to 0.562 inches. Installation is fast and tool-free — the clip snaps directly onto the flange. This part is intended for cable positioning only and is not rated as a cable support or strain relief device. Electricians and low-voltage installers use these clips during rough-in and finish wiring work to route cables cleanly along structural members.

The FSC4D is suited for use in light commercial and residential electrical installations where cables need to be routed along steel or other flanged structural members. Typical applications include conduit-free cable management along I-beams, purlins, or similar flanged surfaces. The snap-on design eliminates the need for drilling, screws, or tie wraps at each positioning point, speeding up cable runs in open framing and drop-ceiling environments.

Key Features

• Snap-on installation requires no additional hardware or tools
• Accepts flange thickness from 3/16 inches to 9/32 inches
• Fits cable outer diameters from 0.468 inches to 0.562 inches
• Intended for cable positioning along flanged structural members
• Speeds up cable routing in open framing and drop-ceiling environments

Compatibility

Designed for use on flanged structural members within the flange thickness range of 3/16 inches to 9/32 inches. Suitable for cables with outer diameters between 0.468 inches and 0.562 inches. Verify flange and cable dimensions before installation.

Installation Notes

Installation is performed by electricians or low-voltage technicians as part of cable routing work. De-energize all circuits in the work area before routing or repositioning cables. The FSC4D is rated for cable positioning only — do not use as a primary cable support or strain relief. Follow applicable NEC requirements for cable support spacing and securing.

Technical Specifications

• Flange Thickness Range: 3/16 inches to 9/32 inches
• Outer Diameter Range: 0.468 inches to 0.562 inches
• UPC: 835243026209

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: FSC4D
