Orbit Industries FSB-OBH Sheet Steel Old Work Standard Ceiling Fan Support Box With Bar Hanger 4-Inch x 4-Inch x 1-1/2-Inch

Product Description

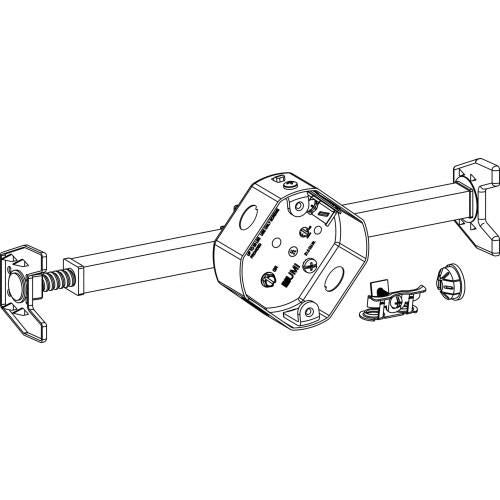

The Orbit Industries FSB-OBH old work standard ceiling fan support box is an octagonal box with a bar hanger. Constructed from 16-gauge sheet steel, it measures 4-Inch x 4-Inch x 1-1/2-Inch and has a 15.5-Cubic-Inch capacity. The box features three 1/2-Inch knockouts and two looms and is OBH-bracket mountable. Includes push-in NM cable connector, BX/MC-clamp, and hardware pack.

• Features 16-gauge sheet steel construction
• Knockouts Size: (3) 1/2-Inch, (2) Loom
• Old work bar hanger for joist spacing from 16-Inch to 24-Inch

Product Highlights

This ceiling fan support box is UL/cULus listed and RoHS compliant, suitable for non-metallic sheathed cable.

Product Information

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: FSB-OBH

Technical Specifications

• Material: 16 Gauge Sheet Steel
• Standards: UL E227970 Listed, Conforms to UL 514A Listed, cULus Certified, RoHS Compliant
• Type: Old Work, Standard
• Size: 4 Inch x 4 Inch
• Shape: Octagonal
• Number of Knockouts: 5
• Mounting: OBH Bracket
• Knockouts: (3) 1/2 Inch, (2) Loom
• Cubic Capacity: 15.5
• Depth: 1.5
• Item Name: Ceiling Fan Support Box With Bar Hanger
• Manufacturer Name: Orbit Industries
• Manufacturer Part Number: FSB-OBH
• Brand Name: Orbit Industries
• Clamp Type: BX/MC, NM
• Bracket: OBH, 16" To 24"
