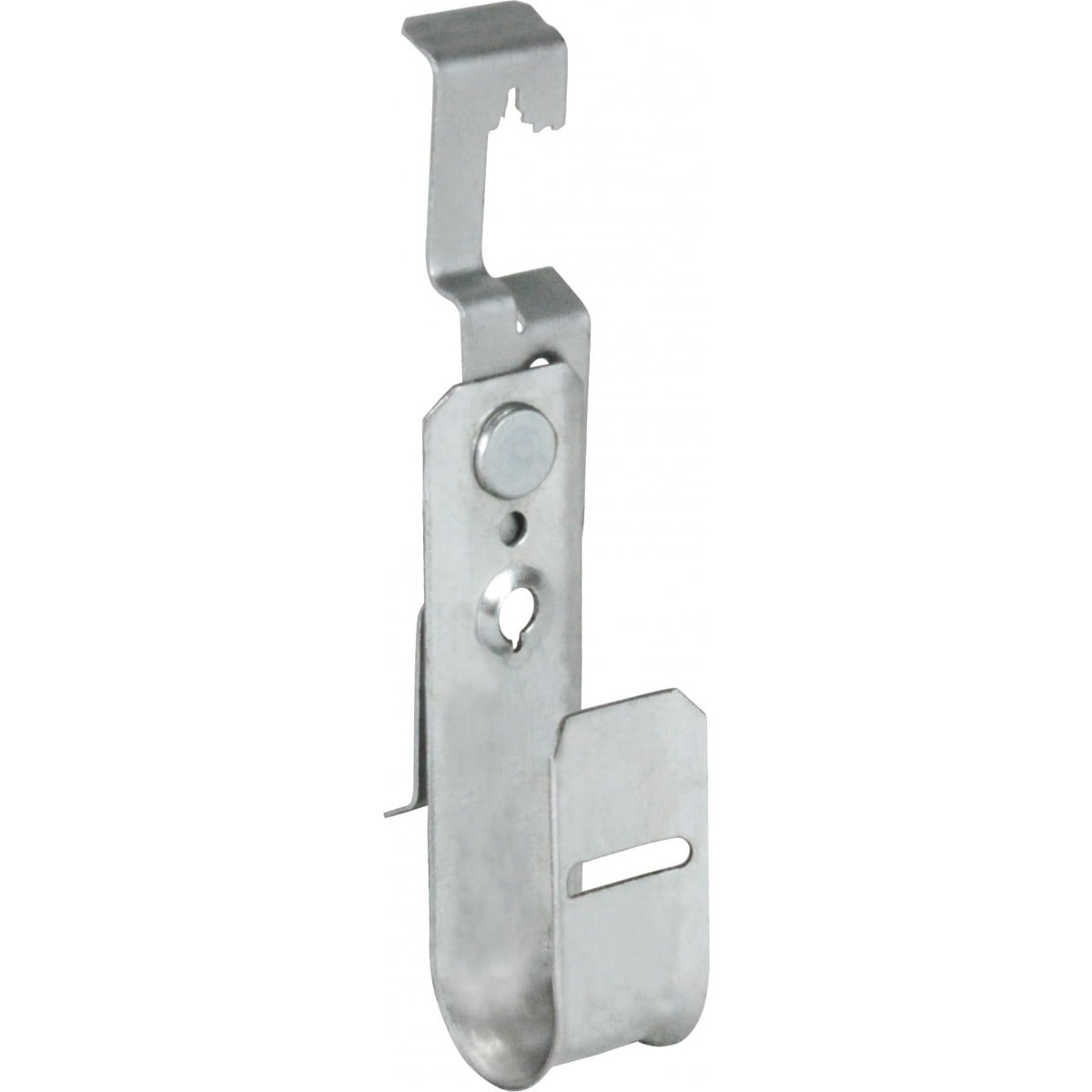

Orbit Industries FCAT124Z34 J-hook Rod Wire Clip 3/4 in

Product Description

The ORBIT INDUSTRIES FCAT124Z34 is a J-hook cable support fitting with an integrated rod and wire clip designed for fast, tool-free installation. The hook accepts a 3/4 inch cable bundle diameter and mounts to flanges ranging from 1/8 inch to 3/8 inch thickness, threaded rods, or support wire. This fitting is used to route and support low-voltage data, communication, and other sensitive cables in commercial and residential construction. Electricians and low-voltage installers rely on this type of support to keep cable runs organized and protected from tension and pulling stress.

The FCAT124Z34 is suited for use in commercial office builds, data center cable runs, and residential structured wiring installations. Its clip-style mounting design allows it to attach directly to a threaded rod hanger, beam flange, or support wire without requiring separate hardware or tools. This makes it practical for high-volume cable support runs where installation speed matters. The 3/4 inch diameter opening accommodates standard-sized cable bundles typical in low-voltage wiring applications.

Key Features

• Tool-free installation — clips directly to flanges, threaded rods, or support wire
• 3/4 inch inner diameter accommodates standard cable bundle sizes
• Flange thickness range of 1/8 inch to 3/8 inch for versatile mounting
• Integrated rod and wire clip eliminates need for separate mounting hardware
• Protects sensitive cables from tension and pulling forces
• Economical design suited for high-volume cable support installations

Compatibility

Designed as an OEM-style cable support fitting for low-voltage and communications cable installations requiring tool-free J-hook mounting to flanges, threaded rods, or support wire.

Installation Notes

Installation is performed by electricians or low-voltage cable installers. De-energize all circuits in the work area before routing cables through the hooks. Ensure the mounting surface — flange, rod, or wire — falls within the 1/8 inch to 3/8 inch thickness range before snapping the clip into place. Follow NEC Article 800 and applicable local codes for communication cable support spacing and routing.

Technical Specifications

• Hook Inner Diameter: 3/4 inch
• Flange Thickness Range: 1/8 inch to 3/8 inch
• Rod Size: 1/4 inch
• UPC: 835243025127

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: FCAT124Z34
