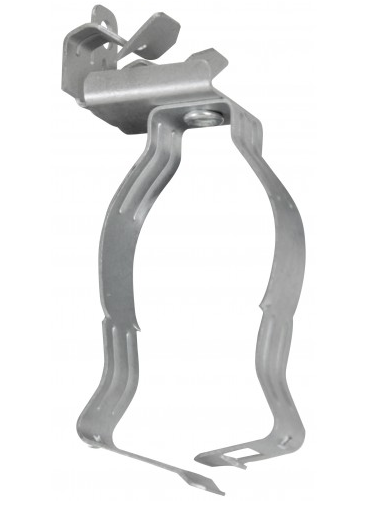

Orbit Industries F812M58 Conduit To Flange Clip 1/2 inches - 3/4 inches EMT, 5/16 inches - 1/2 inches Flange

Product Description

The ORBIT INDUSTRIES F812M58 is a bottom mount snap close conduit to flange clip designed for securing EMT and rigid conduits. Constructed from spring steel, it supports 1/2" - 3/4" EMT conduits and attaches to beam flanges ranging from 5/16" to 1/2". Installation is achieved with a hammer, allowing for quick attachment to flanges from 1/8" to 3/4". Its rotatable joint enables 360 degree positioning for versatile conduit routing.

• Easily installed to beam flanges from 1/8" to 3/4" with a hammer.
• Supports EMT and rigid conduits from the bottom of beams.
• Features a rotatable joint for 360 degree conduit positioning.

Product Highlights

Bottom mount snap close clip for versatile conduit support and easy installation.

Product Information

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: F812M58

Technical Specifications

• Material: Spring Steel
• Conduit Size: 1/2" - 3/4" EMT
• Flange Size: 5/16" - 1/2"
• Mount Type: Bottom Mount
• Clip Type: Snap Close
• Sub-Category: Conduit to Beam/Flange Fastener
• Category: Accessories
