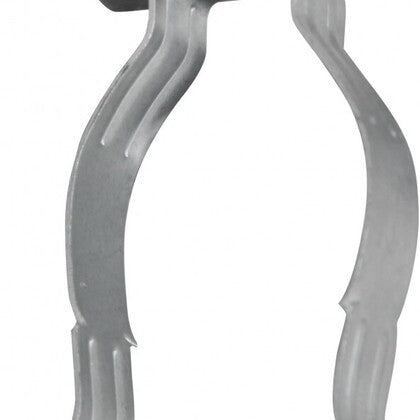

Orbit Industries F812M24 conduit to flange clips bottom mount snap close 1/2 inch - 3/4 inch EMT 1/8 inch - 1/4 inch flange

Product Description

Orbit Industries F812M24 bottom mount snap close conduit to flange clips are designed for easy installation on beam flanges from 1/8 inch to 1/4 inch. These clips support 1/2 inch and 3/4 inch EMT and rigid conduit from the bottom of beams. Installation requires only a hammer, and the snap-close clip can rotate 360 degrees to accommodate various conduit directions. Made from spring steel, they offer a static load capacity of 75 lbs.

• Spring Steel construction for durability.
• Supports conduit or pipes from beam flanges.
• Snap-close clip pivots 360 degrees for flexible positioning.

Product Highlights

Easy hammer-in installation for 1/2 inch - 3/4 inch EMT/rigid conduit on 1/8 inch - 1/4 inch flanges.

Product Information

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: F812M24

Technical Specifications

• Catalog Number: F812M24
• Flange Thickness: 1/8 inch - 1/4 inch
• EMT/Rigid Conduit Size: 1/2 inch, 3/4 inch
• Static Load Capacity: 75 lbs
• Material: Steel
• Product Type: Conduit To Flange Clip
• Mounting Type: Bottom Mount
• Closure Type: Snap Close
