Orbit Industries F6M24 conduit to flange clip bottom mount 3/8 inches fmc 1/8 inches -1/4 inches flange

Product Description

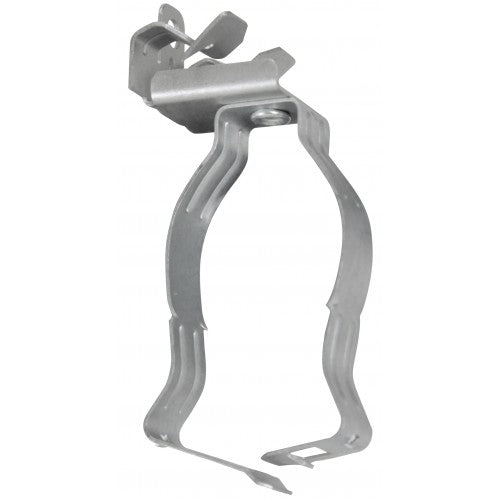

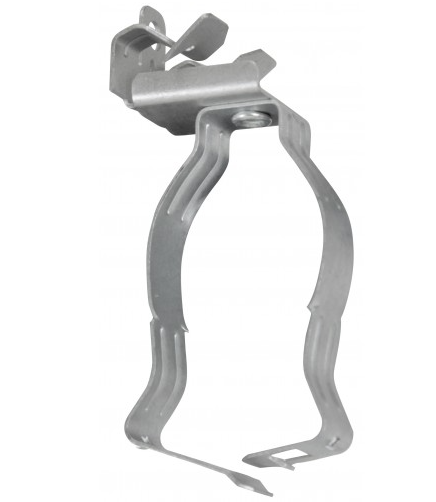

The ORBIT INDUSTRIES F6M24 Conduit To Flange Clip is a bottom mount clip designed to support conduits, pipes, or cables from beam flanges. Made of spring steel, it features a snap-close clip that can pivot through 360 degrees. This clip is suitable for 3/8" FMC and 1/8" - 1/4" flange thicknesses, offering a static load capacity of 75 lb. Installation requires only a hammer.

• Conduit To Flange Clip for secure mounting
• Bottom Mount design for versatile installation
• Snap Close mechanism for quick and easy attachment

Product Highlights

Supports conduits, pipes, or cables from beam flanges with easy hammer installation.

Product Information

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: F6M24
• Country of Origin: United States

Technical Specifications

• MPN: F6M24
• Brand: ORBIT INDUSTRIES
• Inventory SKU: 4550573
• Reference ID: ORBITINDUSTRIESF6M24
• Manufacturer: ORBIT INDUSTRIES, INC./UMI
• Sub-Category: Conduit to Beam/Flange Fastener
• UPC: 835243025769
• Flange Thickness: 1/8" - 1/4"
• FMC Size: 3/8"
• MC/AC Cable Size: 14-2 to 12-3
• Package Quantity: 100
• Static Load Capacity: 75 lb
• UL File Number: E328572
