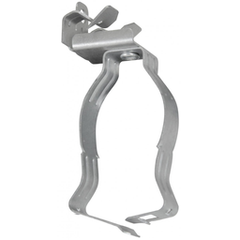

Orbit Industries F24M24 Conduit Flange Clip 1.5 in Bottom Mount

Product Description

The ORBIT INDUSTRIES F24M24 is a bottom-mount, snap-close conduit-to-flange clip designed for securing EMT and rigid conduit to structural beam flanges. Installation requires only a hammer, making it one of the faster fastening methods available for conduit support work. The clip accepts flange thicknesses from 1/8 inch to 1/4 inch and is sized for 1.5-inch conduit. A rotatable joint allows 360-degree rotation so the clip can orient conduit in multiple directions without repositioning the mounting point. Static load rating is 75 pounds. Electricians and electrical contractors working on commercial or industrial steel-framed structures will find this clip suited for beam-mounted conduit runs.

The F24M24 clip is used in commercial and industrial electrical installations where EMT or rigid conduit must be supported from the underside of steel beam flanges. It is well suited to overhead conduit runs in open-web steel construction, mezzanine framing, and structural steel environments where drilling or threaded fasteners are not practical. The snap-close design speeds up repetitive installations along long conduit runs. Standard packaging is 50 clips per unit, making it practical for larger projects requiring multiple support points.

Key Features

• Bottom-mount design secures conduit from the underside of structural beam flanges
• Snap-close mechanism installs with a hammer only — no drilling required
• Rotatable joint provides 360-degree conduit orientation adjustment
• Accepts flange thicknesses from 1/8 inch to 1/4 inch
• Rated for 1.5-inch EMT and rigid conduit with a 75-pound static load capacity
• UL Listed under File Number E328572

Compatibility

Designed for use with 1.5-inch EMT and rigid conduit on structural steel beam flanges measuring 1/8 inch to 1/4 inch in thickness.

Installation Notes

Installation is performed by licensed electricians in accordance with applicable NEC requirements for conduit support and spacing. Power down all circuits in the work area before handling conduit in live electrical environments. Seat the clip fully onto the flange with a hammer until the snap-close mechanism is fully engaged — do not rely on a partially seated clip to bear load. Verify that the beam flange thickness falls within the 1/8-inch to 1/4-inch range before installation.

Technical Specifications

• EMT/Rigid Conduit Size: 1.5 inches
• Flange Thickness Range: 1/8 inch to 1/4 inch
• Static Load Rating: 75 pounds
• Mounting Type: Bottom mount
• Standard Package Quantity: 50
• Certification: UL Listed, File Number E328572

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: F24M24
