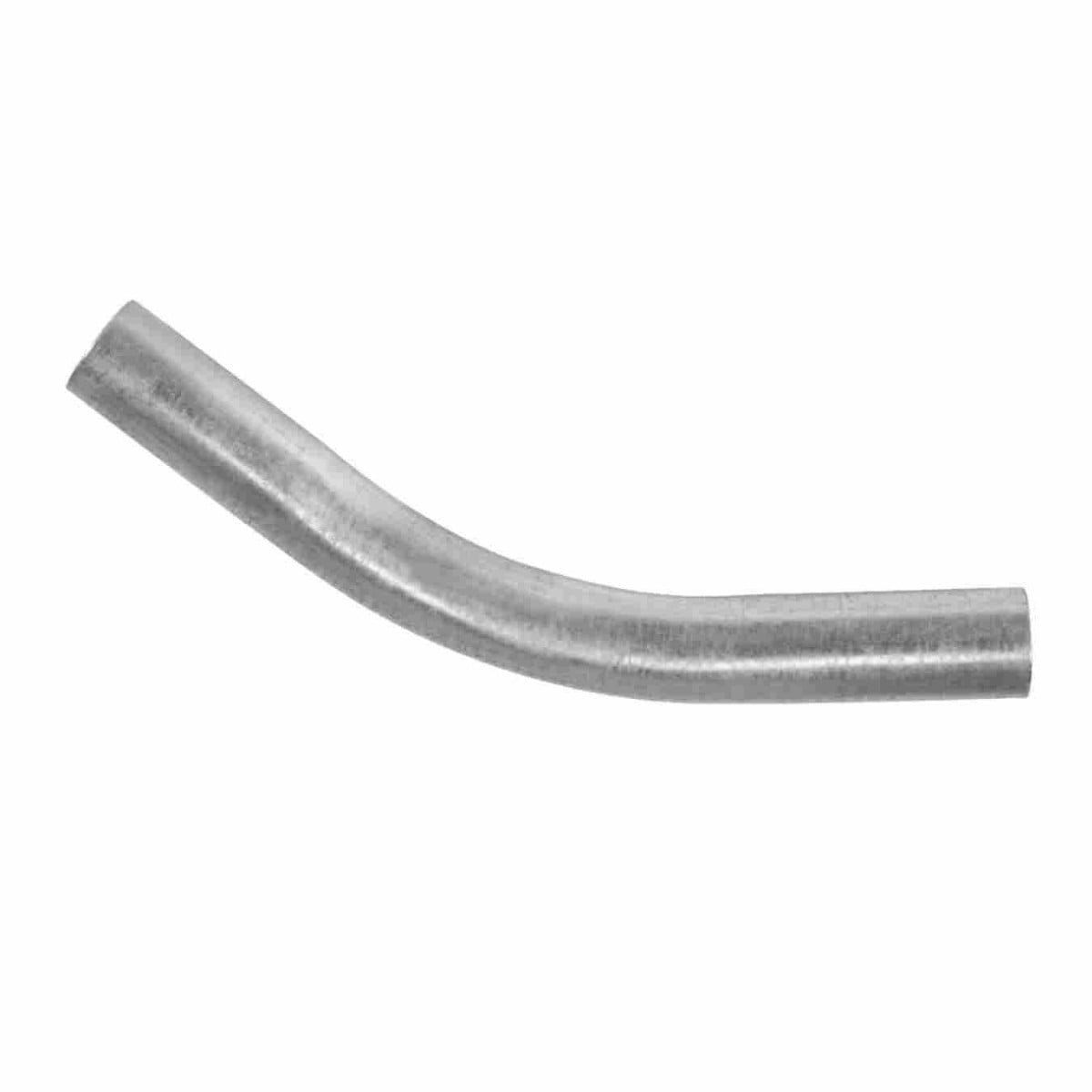

Orbit Industries EEL45-200 Emt Conduit Elbow 45 Degree 2 Inch

Product Description

The ORBIT INDUSTRIES EEL45-200 is a 45-degree EMT conduit elbow in 2-inch trade size, manufactured from prime EMT conduit material in compliance with ANSI C80.3 (UL797). The interior and exterior surfaces are free from defects and feature a smooth welded seam. The elbow is thoroughly coated with zinc through a hot-dip galvanizing process, providing corrosion resistance for both exposed and concealed installations. Electricians use this fitting to redirect EMT conduit runs at 45-degree angles in commercial and residential wiring systems.

This elbow is suited for standard EMT conduit installations where a 45-degree change of direction is required. It is used in residential, commercial, and light industrial electrical applications. The 2-inch trade size accommodates common branch circuit and feeder conduit runs. It is appropriate for use in dry, damp, and wet locations where EMT conduit systems are code-permitted.

Key Features

• 45-degree bend angle for directional changes in EMT conduit runs
• Manufactured from prime EMT conduit stock to ANSI C80.3 (UL797) standards
• Hot-dip galvanized zinc coating on interior and exterior surfaces
• Smooth welded seam with defect-free interior for clean wire pulling
• 2-inch trade size for compatibility with standard EMT fittings and connectors

Compatibility

Designed as a standard OEM-style fitting for use with 2-inch trade size EMT conduit systems in residential and commercial electrical installations.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize all circuits in the work area before beginning conduit work. Use appropriate EMT couplings and connectors rated for the same trade size to complete the assembly. Ensure all connections are mechanically secure and that the conduit system maintains continuity as required by code.

Technical Specifications

• Trade Size: 2 inches
• Bend Angle: 45 degrees
• Conduit Type: EMT
• Standard: ANSI C80.3 (UL797)
• Coating: Hot-dip galvanized zinc
• UPC: 835243052963

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: EEL45-200
