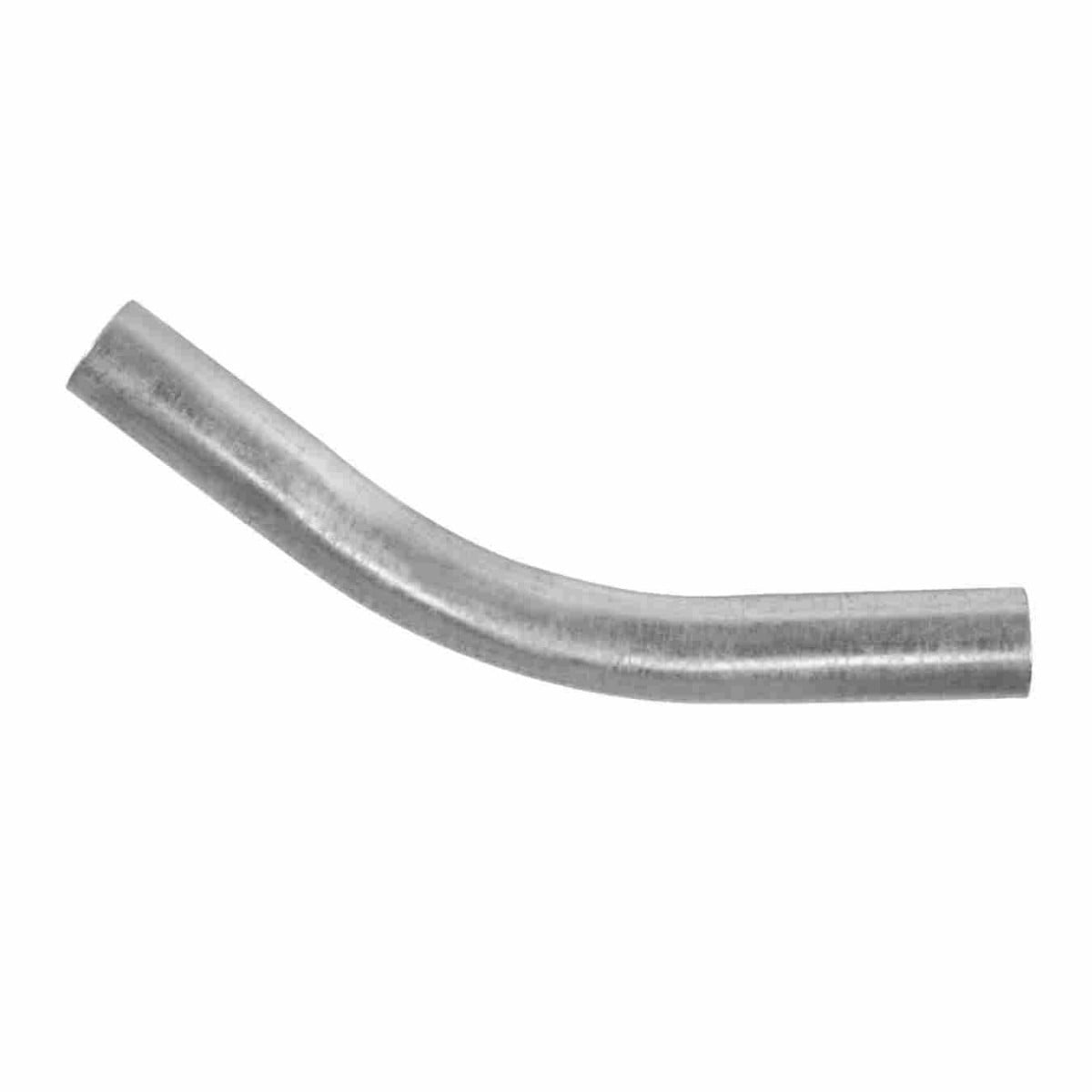

Orbit Industries EEL45-150 Emt Conduit Elbow 45 Degree 1-1/2 in

Product Description

The ORBIT INDUSTRIES EEL45-150 is a 45-degree EMT conduit elbow in 1-1/2 inch trade size, manufactured from prime EMT conduit stock in accordance with ANSI C80.3 and UL797 standards. It is used to redirect electrical metallic tubing runs in residential, commercial, and industrial raceway systems. The interior and exterior surfaces are free from defects and feature a smooth welded seam. A hot-dip galvanizing process applies an even zinc coating to both surfaces, providing corrosion resistance in standard indoor and outdoor conduit installations. Licensed electricians and electrical contractors install this fitting as part of an EMT raceway system.

This elbow is suited for use in EMT conduit systems where a 45-degree directional change is required. Typical applications include panel feeds, branch circuit runs, and equipment connections in residential wiring, light commercial construction, and industrial facilities. It is produced to normal trade sizes and is intended to connect standard EMT conduit segments where the run must change direction at a 45-degree angle.

Key Features

• Manufactured to ANSI C80.3 and UL797 specifications for EMT conduit fittings
• Hot-dip galvanized zinc coating on interior and exterior surfaces for corrosion resistance
• Smooth welded seam interior reduces wire pull friction
• 1-1/2 inch trade size fits standard EMT conduit of that designation
• 45-degree bend angle for standard directional changes in conduit runs

Compatibility

Designed as an OEM-style replacement and standard fitting for use with 1-1/2 inch trade size EMT conduit systems in conformance with ANSI C80.3 requirements.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize all circuits in the affected raceway before beginning work. Secure all conduit connections with listed set-screw or compression couplings appropriate for EMT. Do not use this fitting with rigid metal conduit (RMC) or intermediate metal conduit (IMC) systems, as trade size dimensions differ between conduit types.

Technical Specifications

• Trade Size: 1-1/2 inches
• Bend Angle: 45 degrees
• Conduit Type: EMT (Electrical Metallic Tubing)
• Coating: Hot-dip galvanized zinc
• Standard: ANSI C80.3 / UL797
• UPC: 835243052956

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: EEL45-150
