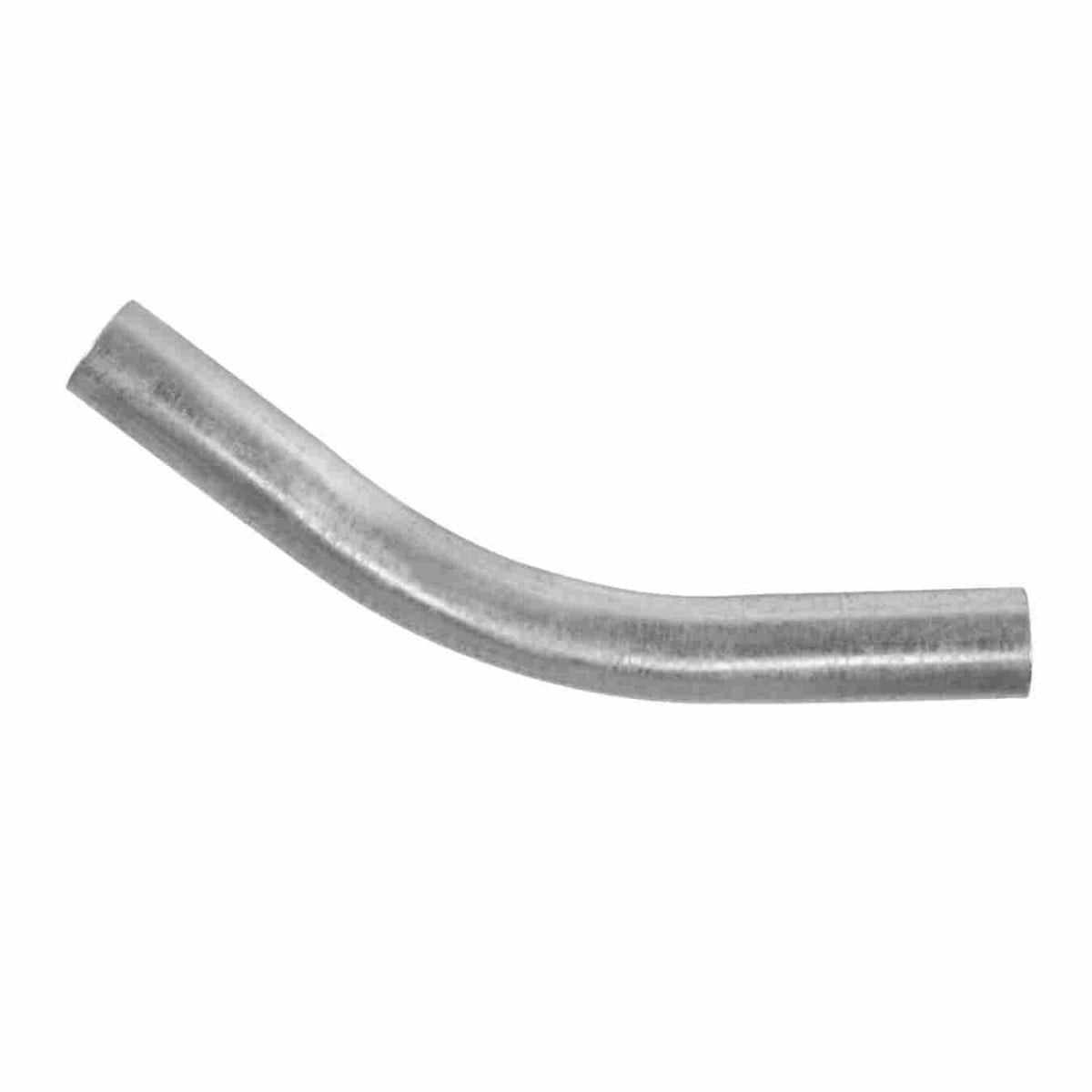

Orbit Industries EEL45-125 Emt Conduit Elbow 45 Degree

Product Description

The ORBIT INDUSTRIES EEL45-125 is a 45-degree EMT conduit elbow manufactured to ANSI C80.3 (UL797) standards. It is made from prime EMT conduit stock and finished with a hot-dip galvanizing process that applies a thorough, even zinc coating to both interior and exterior surfaces. The welded seam is smooth and free of surface defects. This elbow is used to redirect EMT conduit runs at a 45-degree angle and is installed by licensed electricians during new construction and retrofit wiring projects.

This elbow fits 1-1/4 inch trade size EMT conduit and is suited for commercial and residential electrical installations where conduit direction changes are required. It is used in exposed and concealed raceway systems wherever a 45-degree bend is needed without field bending. The hot-dip galvanized finish provides corrosion resistance appropriate for interior and protected exterior applications.

Key Features

• 45-degree angle for precise conduit direction changes without field bending
• Manufactured to ANSI C80.3 (UL797) specifications
• Hot-dip galvanized zinc coating on interior and exterior surfaces
• Smooth welded seam with defect-free surface finish
• 1-1/4 inch trade size fits standard EMT conduit

Compatibility

Designed as an OEM-style fitting for use with 1-1/4 inch trade size EMT conduit systems in standard electrical raceway installations.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize all circuits in the affected raceway before beginning conduit work. Use appropriate EMT couplings and connectors to secure the elbow to adjoining conduit sections. Inspect the galvanized coating for damage before installation and do not install in environments that exceed the rated conditions of the galvanized finish.

Technical Specifications

• Trade Size: 1-1/4 inch
• Angle: 45 degrees
• Conduit Type: EMT
• Finish: Hot-dip galvanized zinc
• Standard: ANSI C80.3 (UL797)
• UPC: 835243052949

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: EEL45-125
