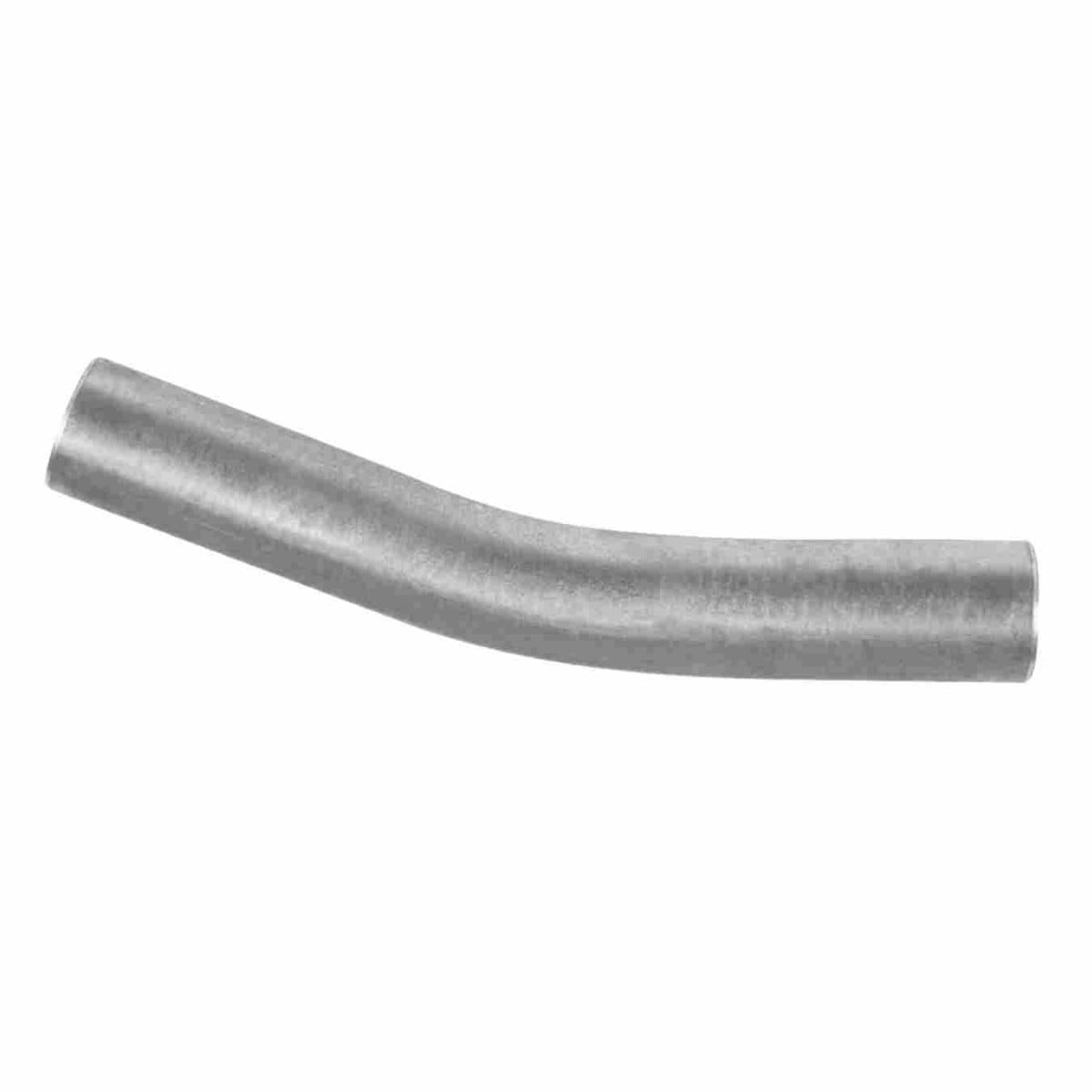

Orbit Industries EEL22-300 Emt Conduit Elbow 22.5 Deg 3 in

Product Description

The ORBIT INDUSTRIES EEL22-300 is a 22.5-degree EMT conduit elbow in 3-inch trade size, used to redirect electrical conduit runs at a shallow angle within raceway systems. Manufactured from prime EMT conduit stock, this elbow meets ANSI C80.3 (UL797) specifications. Interior and exterior surfaces are finished with a hot-dip galvanizing process, applying a thorough and even zinc coating for corrosion resistance. The welded seam is smooth and free from surface defects. Licensed electricians install this fitting during new construction, renovation, and service upgrade work where a 22.5-degree direction change in an EMT conduit run is required.

This elbow is suited for use in residential and commercial electrical installations where EMT conduit systems require a gradual angle change rather than a sharp 90-degree bend. It is compatible with standard 3-inch trade size EMT conduit and is produced in accordance with industry standards for normal trade sizes. Typical install locations include exposed runs in equipment rooms, panels, and commercial service entrances where conduit routing must navigate around structural elements or follow specific raceway layouts.

Key Features

• 22.5-degree bend angle for shallow direction changes in EMT conduit runs
• 3-inch trade size fits standard EMT conduit of the same designation
• Manufactured from prime EMT conduit stock per ANSI C80.3 (UL797)
• Hot-dip galvanized interior and exterior surfaces for corrosion resistance
• Smooth welded seam with defect-free surface finish

Compatibility

Designed as an OEM-style fitting for 3-inch trade size EMT conduit systems installed in compliance with NEC raceway requirements.

Installation Notes

Installation is performed by a licensed electrician. De-energize all circuits and verify lockout/tagout procedures are in place before working on or near any conduit system. Conduit fittings must be secured and connected in accordance with applicable NEC requirements. Do not use EMT fittings in applications requiring rigid metallic conduit or in environments where EMT is not a code-permitted wiring method.

Technical Specifications

• Trade Size: 3 inches
• Bend Angle: 22.5 degrees
• Material: Prime EMT conduit stock, hot-dip galvanized zinc coating
• Standard: ANSI C80.3 (UL797)
• UPC: 835243054127

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: EEL22-300
