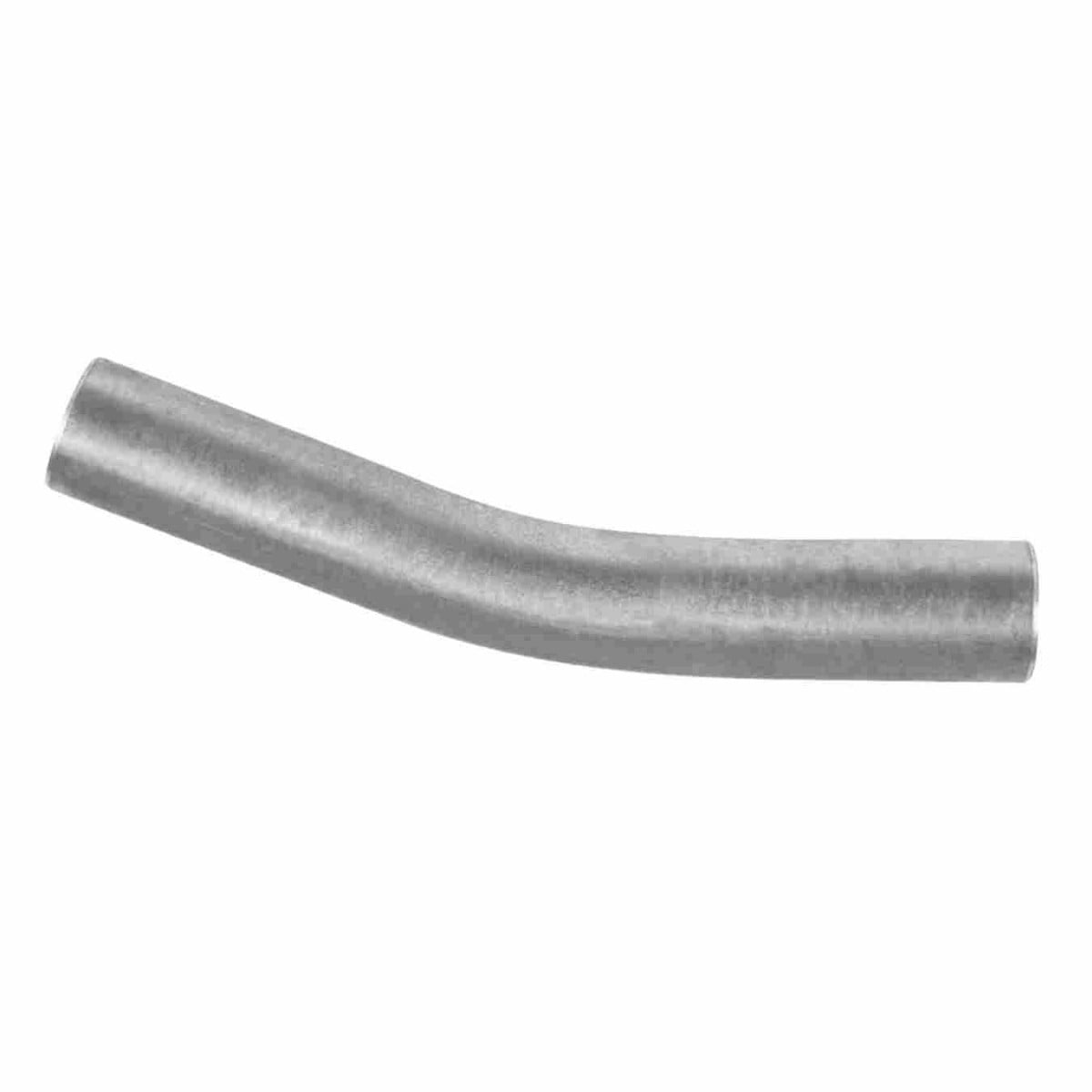

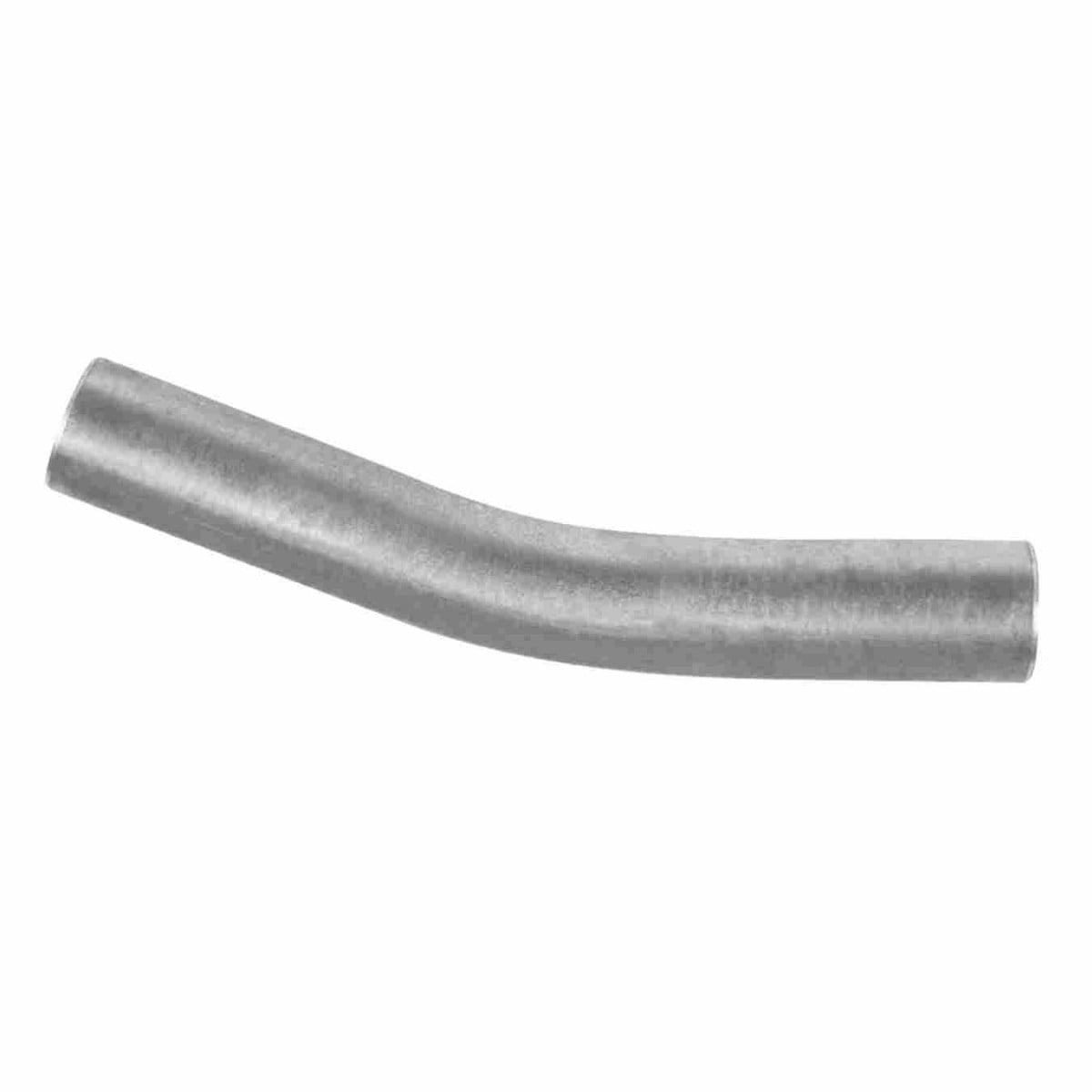

Orbit Industries EEL22-250 Emt Conduit Elbow 22.5 Deg 2-1/2 in

Product Description

The ORBIT INDUSTRIES EEL22-250 is a 22.5-degree EMT conduit elbow in 2-1/2 inch trade size, manufactured from prime EMT conduit stock to ANSI C80.3 (UL797) specifications. The elbow is used to redirect EMT conduit runs at a 22.5-degree angle, making it a standard fitting in commercial and residential electrical installations where shallow directional changes are required. Interior and exterior surfaces are free from defects and feature a smooth welded seam. The elbow is finished using a hot-dip galvanizing process, providing thorough and even zinc coating for corrosion resistance. Licensed electricians and electrical contractors install this fitting as part of a complete EMT raceway system.

This elbow is suited for use in commercial, industrial, and residential electrical installations where EMT conduit is the specified raceway method. It is used when routing conductors around obstructions or changing conduit direction at a 22.5-degree offset. The fitting connects standard 2-1/2 inch EMT conduit sections and is appropriate for both exposed and concealed conduit runs where the application and environment are compatible with EMT.

Key Features

• 22.5-degree bend angle for shallow directional changes in EMT runs
• 2-1/2 inch trade size fits standard EMT conduit
• Manufactured to ANSI C80.3 (UL797) specifications
• Hot-dip galvanized zinc coating on interior and exterior surfaces
• Smooth welded seam with defect-free surface finish

Compatibility

Designed as an OEM-style fitting for use with standard 2-1/2 inch EMT conduit systems in accordance with ANSI C80.3 (UL797).

Installation Notes

Installation is performed by licensed electricians in accordance with applicable NEC requirements for EMT raceway systems. De-energize all circuits in the conduit run before beginning work. Use appropriate EMT couplings and connectors to secure the elbow to adjoining conduit sections. EMT elbows are not suitable for direct burial or concrete encasement unless the installation is otherwise code-compliant for that application.

Technical Specifications

• Trade Size: 2-1/2 inches
• Bend Angle: 22.5 degrees
• Standard: ANSI C80.3 (UL797)
• Finish: Hot-dip galvanized zinc
• UPC: 835243054110

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: EEL22-250
